Massey Ferguson 383 Engine


Massey Ferguson 383 tractor photo
1987 - 1997
Model year
300 Series
Utility tractor
Series map:
375
383
390
70.0hp
76.0hp
79.0hp
Engine Detail
Perkins A4.248
diesel
4-cylinder
liquid-cooled
Displacement248 ci
4.1 L
Bore/Stroke3.975x5.00 inches
101 x 127 mm
Power76 hp
56.7 kW
Fuel systemdirect injection
Air cleanerdual dry element
Compression16:1
Rated RPM2200
Idle RPM750-2380
Torque206 lb-ft
279.3 Nm
Torque RPM1400
Firing order1-3-4-2
Starterelectric
Starter volts12

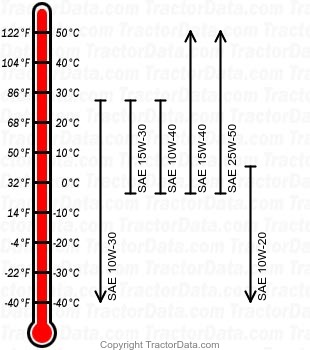

Oil capacity7.9 qts
7.5 L
Coolant capacity16 qts
15.1 L
