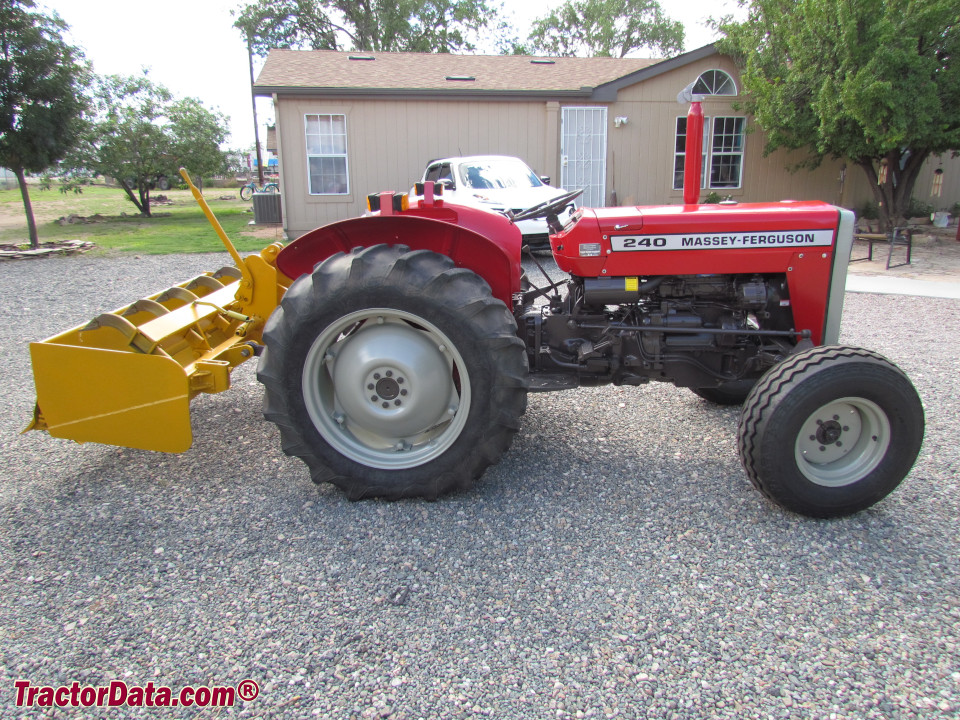

Massey Ferguson 240
| | 1980 - 1999 |
| 200 Series | | Utility tractor |
|
Series map:
240
250
46.0hp
44.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Massey Ferguson
|
| Utility tractor |
| Built in Coventry, England |
| Original price was $18,800 in 1998 |
| Production of the Massey Ferguson 240 in the UK market began in 1979. North American production began in 1983. |
| Massey Ferguson 240 Power |
| Engine | 46 hp
34.3 kW
|
| PTO (claimed) | 41 hp
30.6 kW
|
| Drawbar (tested) | 28.69 hp
21.4 kW
|
| PTO (tested) | 34.77 hp
25.9 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Steering | hydrostatic power
|
| Brakes | mechanical drum (early)
|
| | differential mechanical wet disc (late)
|
| Two-post ROPS. Canopy optional. |
| Capacity |
| Fuel | 12.6 gal
47.7 L
|
| Hydraulic system | 8.6 gal
32.6 L
|
| Hydraulics |
| Type | open
|
| Capacity | 8.6 gal
32.6 L
|
| Valves | 2
|
| Pump flow | 9.5 gpm
36.0 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position and draft control
|
| Power Take-off (PTO) |
| Rear PTO | live (two-stage clutch)
|
| Rear PTO Type | 540
|
| 240 Serial Numbers |
| Location: | Instrument panel, lower right
|
| 1983 | 524172
|
| 1984 | 552016
|
| 1985 | 557882
|
| 1986 | 862369
|
| 1986 (late) | U01001
|
| 1987 | V01001
|
| 1988 | N01001
|
| 1989 | P01001
|
| 1990 | R01001
|
| 1991 | S01001
|
| 1992 | A01001
|
| 1993 | B01001
|
| 1994 | C01001
|
| 1995 | D01001
|
| 1996 | E01001
|
| 1997 | F01001
|
| 1998 | G01001
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 32
|
| Battery volts | 12
|
| References |
 |
| Loaders - Compact and Agricultural published in 1989, by Massey Ferguson |
| 200 Series published in 1983, by Massey Ferguson |
| MF 200 Series published in 1994, by Massey Ferguson |
