| | 1975 - 1976 |
| 200 Series | | Utility tractor |
|
Series map:
230
235
245
38.0hp
46.7hp*
45.0hp
| Transmission options |
| 6-speed gear |
| 8-speed gear |
| 12-speed partial power shift |
| Transmission |
| Type | gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 32 qts
30.3 L
|
| Oil type |
|
| Oil change | annually
|
| Speeds |
| With 13.6-28 rear tires. |
|
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 32 qts
30.3 L
|
| Oil type |
|
| Oil change | annually
|
| Speeds |
| With 13.6-28 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | Multi-Power
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 32 qts
30.3 L
|
| Oil type |
|
| Oil change | annually
|
| Three gears, plus reverse, with high and low range. Multi-Power provides two-speed power shift to each gear. |

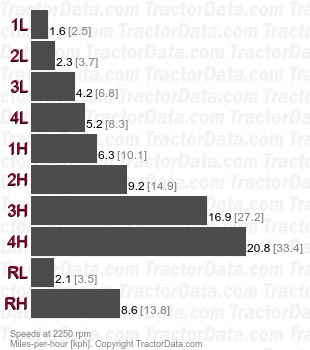

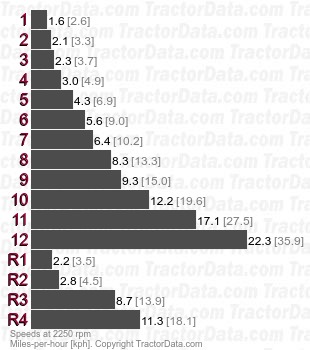

| Speeds |
| With 13.6-28 rear tires. |
|
