Massey Ferguson 230 Tests
|
|
| Tractor Tests | |
| NTTL 1214: diesel 6-speed 2WD | |
| NTTL 1215: gasoline 6-speed 2WD |

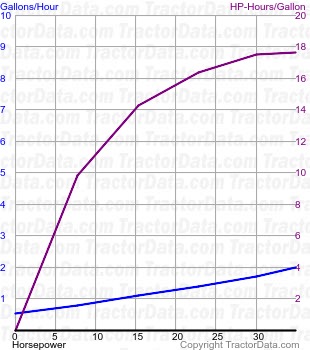

| Nebraska Tractor Test 1214 | |||
| |||
| Nebraska Tractor Test 1214 | |
| Diesel 6-speed 2WD June 1, 1976 - June 9, 1971 Link: Nebraska Tractor Test 1214 file | |
| PTO performance | |
| Power at rated engine speed | 34.53 hp 25.7 kW |
| Fuel use | 1.9 gal/hour 7.2 l/hour |
| Power at rated PTO speed | 30.80 hp 23.0 kW |
| Fuel use | 1.7 gal/hour 6.4 l/hour |
| Drawbar performance | |
| Max power | 28.36 hp 21.1 kW |
| Fuel use | 1.9 gal/hour 7.2 l/hour |
| Gear 4 used for power test. | |
| Max pull | 4,030 lbs 1828 kg |
| Gear 2L used for pull test. | |

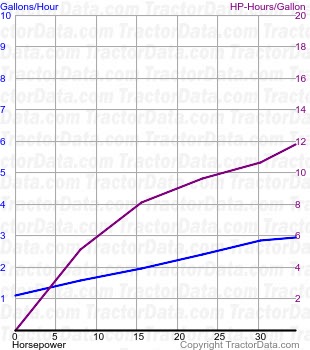

| Nebraska Tractor Test 1215 | |||
| |||
| Nebraska Tractor Test 1215 | |
| Gasoline 6-speed 2WD June 1 - 10, 1976 Link: Nebraska Tractor Test 1215 file | |
| PTO performance | |
| Power at rated engine speed | 34.34 hp 25.6 kW |
| Fuel use | 3.0 gal/hour 11.4 l/hour |
| Power at rated PTO speed | 31.29 hp 23.3 kW |
| Fuel use | 2.7 gal/hour 10.2 l/hour |
| Drawbar performance | |
| Max power | 28.24 hp 21.1 kW |
| Fuel use | 2.9 gal/hour 11.0 l/hour |
| Gear 4 used for power test. | |
| Max pull | 3,717 lbs 1686 kg |
| Gear 2L used for pull test. | |
