Massey Ferguson 175 Engine
|
|
| Engine options | |
| Perkins 3.9L 4-cyl diesel | |
| Perkins 3.9L 4-cyl gasoline | |
| Continental 3.4L 4-cyl gasoline |
| Engine Detail | |
| Perkins A4.236 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 236 ci 3.9 L |
| Bore/Stroke | 3.875x5.00 inches 98 x 127 mm |
| Air cleaner | dry |
| Pre-heating | ether injection OptOptional |
| Compression | 16:1 |
| Rated RPM | 2000 |
| Idle RPM | 725-2185 |
| Firing order | 1-3-4-2 |
| Starter volts | 12 |
| Coolant capacity | 13.5 qts 12.8 L |
| Engine Oil | |
| |
| Oil capacity | 9.5 qts 9.0 L |
| Engine Detail | |
| Perkins AG4.236 | |
| gasoline | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| The Perkins AG4.236 became the gasoline engine option in 1969. | |
| Displacement | 236 ci 3.9 L |
| Bore/Stroke | 3.875x5.00 inches 98 x 127 mm |
| Air cleaner | dry |
| Compression | 7:1 |
| Rated RPM | 2000 |
| Starter volts | 12 |
| Engine Detail | |
| Continental G206 | |
| gasoline | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| The G206 was used in the Massey Ferguson 175 from 1964 to 1968. | |
| Displacement | 206 ci 3.4 L |
| Bore/Stroke | 3.812x4.50 inches 97 x 114 mm |
| Compression | 7.1:1 |
| Rated RPM | 2000 |
| Idle RPM | 450-2250 |
| Firing order | 1-3-4-2 |
| Coolant capacity | 10.5 qts 9.9 L |
| Sparkplug | Champion D-16 |
| Sparkplug gap | 0.025 inches 0.635 mm |

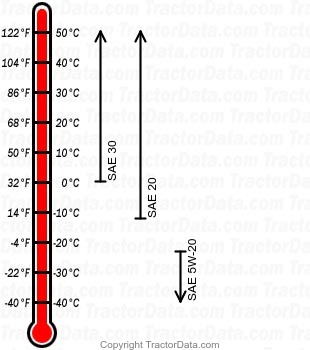

| Engine Oil | |
| |
| Oil capacity | 6 qts 5.7 L |
