Massey Ferguson 135 Tests


Massey Ferguson 135 tractor photo
1964 - 1975
100 Series
Utility tractor
Series map:
130
135
150
30.0hp
45.5hp
45.5hp
Tractor Tests
NTTL 895: diesel 12-speed 2WD
NTTL 899: 145 gasoline 12-speed 2WD
NTTL 1009: 153 gasoline 12-speed 2WD
Nebraska Tractor Test 895

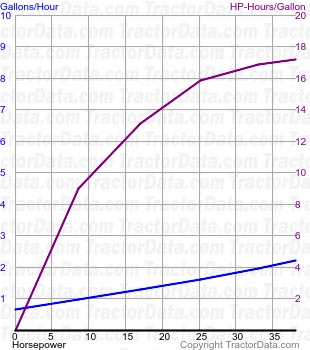

135 fuel use from test 895
Nebraska Tractor Test 895
Diesel 12-speed 2WD
May 13 - 26, 1965
Link: Nebraska Tractor Test 895 file
PTO performance
Power at rated engine speed37.82 hp
28.2 kW
Fuel use2.2 gal/hour
8.3 l/hour
Power at rated PTO speed34.86 hp
26.0 kW
Fuel use2.0 gal/hour
7.6 l/hour
Drawbar performance
Max power33.06 hp
24.7 kW
Fuel use2.2 gal/hour
8.3 l/hour
Gear 1HL used for power test.
Max pull4,338 lbs
1967 kg
Gear 2LH used for pull test.
Nebraska Tractor Test 899

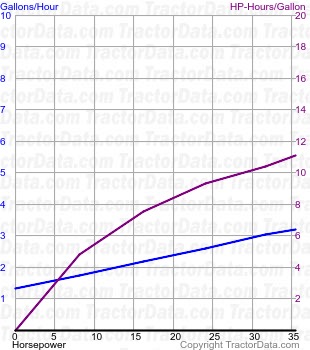

135 fuel use from test 899
Nebraska Tractor Test 899
145 gasoline 12-speed 2WD
May 19 - June 9, 1965
Link: Nebraska Tractor Test 899 file
PTO performance
Power at rated engine speed35.37 hp
26.4 kW
Fuel use3.2 gal/hour
12.1 l/hour
Power at rated PTO speed32.55 hp
24.3 kW
Fuel use2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power30.45 hp
22.7 kW
Fuel use3.4 gal/hour
12.9 l/hour
Gear 1HL used for power test.
Max pull4,105 lbs
1862 kg
Gear 2LH used for pull test.
Nebraska Tractor Test 1009

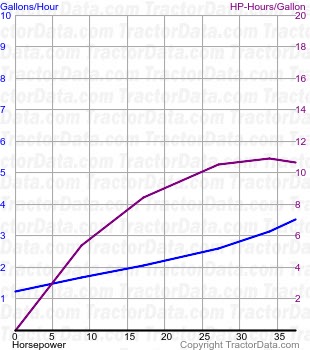

135 fuel use from test 1009
Nebraska Tractor Test 1009
153 gasoline 12-speed 2WD
April 28 - May 8, 1969
Link: Nebraska Tractor Test 1009 file
PTO performance
Power at rated engine speed37.55 hp
28.0 kW
Fuel use3.5 gal/hour
13.2 l/hour
Power at rated PTO speed35.34 hp
26.4 kW
Fuel use3.2 gal/hour
12.1 l/hour
Drawbar performance
Max power32.0 hp
23.9 kW
Fuel use3.4 gal/hour
12.9 l/hour
Gear 7 used for power test.
Max pull4,207 lbs
1908 kg
Gear 4 used for pull test.
