Massey Ferguson 85 Engine


Massey Ferguson 85 tractor photo
1959 - 1962
Row-Crop tractor
Engine options
Continential 3.7L 4-cyl gasoline
Continential 4.0L 4-cyl gasoline
Continental 4.0L 4-cyl LP gas
Continential 4.5L 4-cyl diesel
Engine Detail
Continential E-223
gasoline
4-cylinder
liquid-cooled vertical L-head
The E223 was used on early-production models of the Massey 85. It was replaced with the E242.
Displacement223 ci
3.7 L
Bore/Stroke3.8125x5.125 inches
97 x 130 mm
Air cleaneroil bath
Compression7.35:1
Rated RPM2000
Starter volts12
Oil capacity7 qts
6.6 L
Coolant capacity15 qts
14.2 L
Massey Ferguson 85 Engine

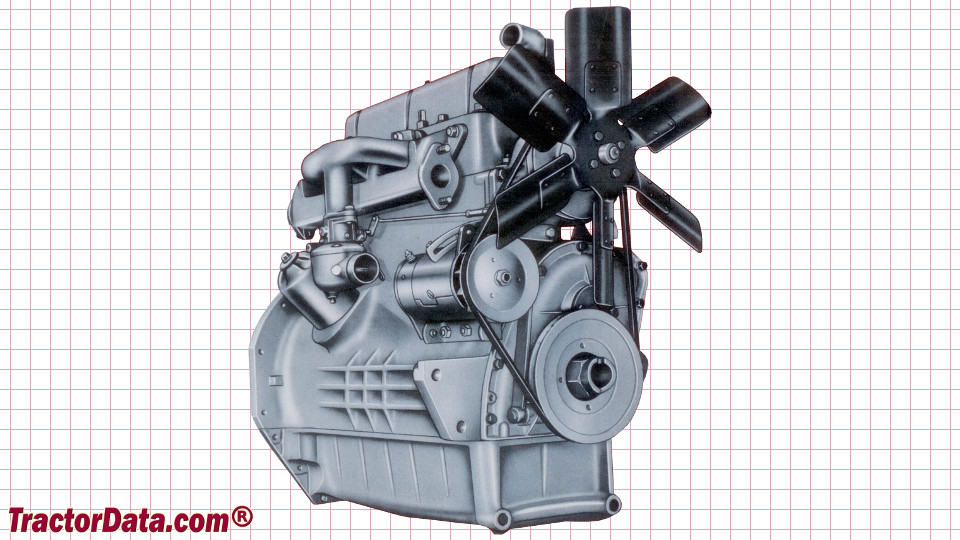

Massey Ferguson 85 engine image
Engine Detail
Continential E-242
gasoline
4-cylinder
liquid-cooled vertical L-head
Late engine. The 242 replaced the earlier Continental 223.
Displacement242 ci
4.0 L
Bore/Stroke3.875x5.125 inches
98 x 130 mm
Air cleaneroil bath
Compression7.35:1
Rated RPM2000
Engine Detail
Continental E-242
LP gas
4-cylinder
liquid-cooled vertical L-head
Displacement242 ci
4.0 L
Bore/Stroke3.875x5.125 inches
98 x 130 mm
Compression8.8:1
Rated RPM2000
Engine Detail
Continential
diesel
4-cylinder
liquid-cooled
Displacement276.5 ci
4.5 L
Bore/Stroke4.00x5.50 inches
102 x 140 mm
Air cleaneroil bath
Compression15.2:1
Rated RPM2000
