Massey Ferguson 35 Engine


Massey Ferguson 35 tractor photo
1960 - 1965
Utility tractor
Series map:
35
41.2hp*
*Estimated engine power for comparison only.
Engine options
Perkins 2.5L 3-cyl diesel
Continental 2.2L 4-cyl gasoline
Engine Detail
Perkins 3.152
diesel
3-cylinder
liquid-cooled
Displacement152.7 ci
2.5 L
Bore/Stroke3.60x5.00 inches
91 x 127 mm
Air cleanerdry
Compression17.4:1
Rated RPM2000
Idle RPM700-2150
Firing order1-2-3
Starter volts12
Oil capacity6 qts
5.7 L
Massey Ferguson 35 Engine

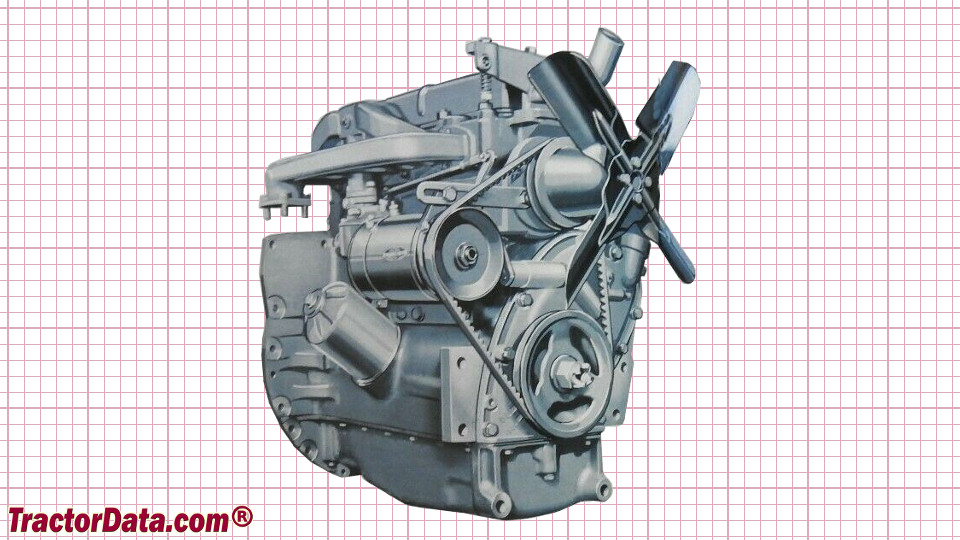

Massey Ferguson 35 engine image
Engine Detail
Continental
gasoline
4-cylinder
liquid-cooled OHV
Displacement134 ci
2.2 L
Bore/Stroke3.3125x3.875 inches
84 x 98 mm
Compression6.6:1
Rated RPM2200
Idle RPM450-2250
Firing order1-3-4-2
Starter volts12
Coolant capacity10 qts
9.5 L
Sparkplug18mm
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.013 inches*Hot
0.330 mm
Exhaust valve clearance0.013 inches*Hot
0.330 mm
Engine Oil

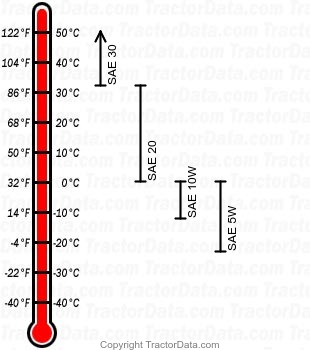

35 gasoline engine oil chart
Oil capacity6 qts
5.7 L
Oil change100 h
Massey Ferguson 35 Engine

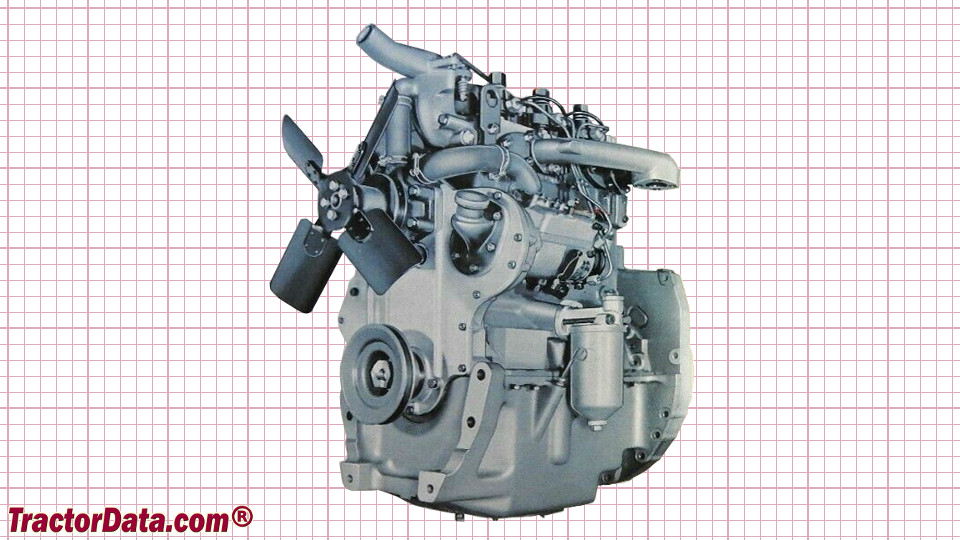

Massey Ferguson 35 engine image
