Series map:
1870
2270
107.8hp*
163.3hp*
*Estimated engine power for comparison only.
Note: the Oliver model 1870 is the same as the Minneapolis-Moline G955. The following data is from the G955 listing. |
| Transmission options |
| 6-speed gear |
| 18-speed three-range power shift |
| Transmission |
| Type | gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 355.6mm dry disc
|
| Oil capacity | 43 qts
40.7 L
|

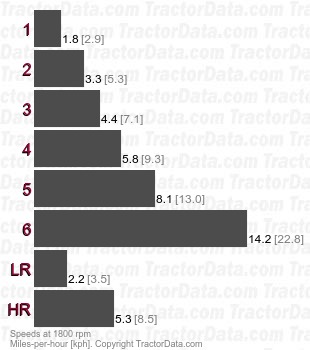

| Speeds |
| With 18.4-38 rear tires. |
|
| Transmission |
| Transmission | Hydraul-Shift
|
| Type | three-range power shift
|
| Gears | 18 forward and 6 reverse
|
| Clutch | 355.6mm dry disc
|
| Oil capacity | 43 qts
40.7 L
|
| Six gears (1-6) with a three-range power shift (under, direct, and over drive). |

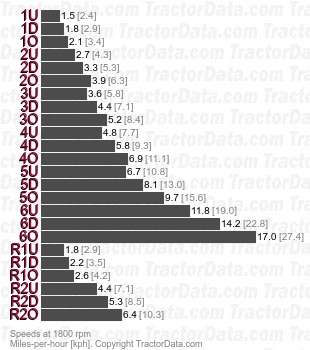

| Speeds |
| With 18.4-38 rear tires. |
|
