Tractor Tests | |
NTTL 869: diesel 12-speed 4WD | |
NTTL 870: diesel 12-speed 2WD | |
NTTL 875: gasoline 12-speed 2WD | |
NTTL 876: gasoline 12-speed 4WD |

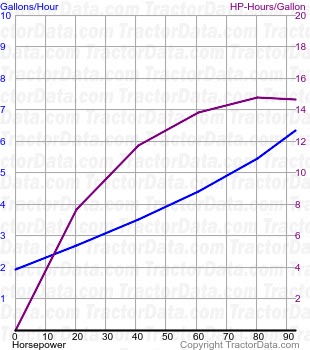

Nebraska Tractor Test 869 | |||
|
Nebraska Tractor Test 869 | |
Diesel 12-speed 4WD October 26 - November 3, 1964 Link: Nebraska Tractor Test 869 file | |
PTO performance | |
Power at rated engine speed | 92.92 hp 69.3 kW |
Fuel use | 6.3 gal/hour 23.8 l/hour |
Drawbar performance | |
Max power | 83.55 hp 62.3 kW |
Fuel use | 6.3 gal/hour 23.8 l/hour |
Gear 4-low used for power test. | |
Max pull | 14,407 lbs 6535 kg |
Gear 1-high used for pull test. |

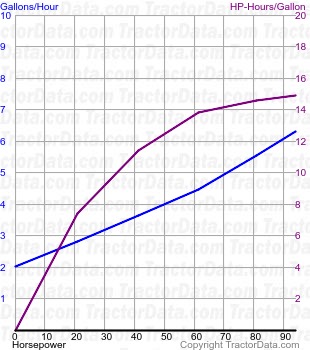

Nebraska Tractor Test 870 | |||
|
Nebraska Tractor Test 870 | |
Diesel 12-speed 2WD October 26 - November 5, 1964 Link: Nebraska Tractor Test 870 file | |
PTO performance | |
Power at rated engine speed | 92.94 hp 69.3 kW |
Fuel use | 6.3 gal/hour 23.8 l/hour |
Drawbar performance | |
Max power | 80.04 hp 59.7 kW |
Fuel use | 6.1 gal/hour 23.1 l/hour |
Gear 4-low used for power test. | |
Max pull | 10,773 lbs 4886 kg |
Gear 2-low used for pull test. |

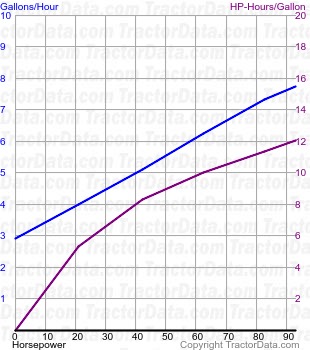

Nebraska Tractor Test 875 | |||
|
Nebraska Tractor Test 875 | |
Gasoline 12-speed 2WD November 12 - 24, 1964 Link: Nebraska Tractor Test 875 file | |
PTO performance | |
Power at rated engine speed | 92.43 hp 68.9 kW |
Fuel use | 7.7 gal/hour 29.1 l/hour |
Drawbar performance | |
Max power | 76.66 hp 57.2 kW |
Fuel use | 7.8 gal/hour 29.5 l/hour |
Gear 4-low used for power test. | |
Max pull | 10,675 lbs 4842 kg |
Gear 4-low used for pull test. |

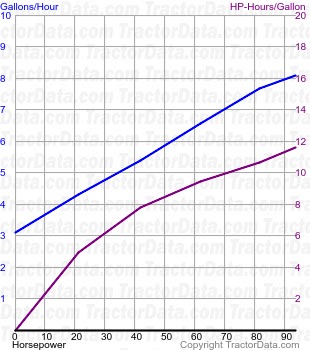

Nebraska Tractor Test 876 | |||
|
Nebraska Tractor Test 876 | |
Gasoline 12-speed 4WD November 16 - 24, 1964 Link: Nebraska Tractor Test 876 file | |
PTO performance | |
Power at rated engine speed | 92.92 hp 69.3 kW |
Fuel use | 8.1 gal/hour 30.7 l/hour |
Drawbar performance | |
Max power | 84.52 hp 63.0 kW |
Fuel use | 8.2 gal/hour 31.0 l/hour |
Gear 4-low used for power test. | |
Max pull | 14,227 lbs 6453 kg |
Gear 1 used for pull test. |
