Oliver 1750 Transmission


Oliver 1750 tractor photo
1966 - 1969
50 Series
Row-Crop tractor
Series map:
1650
1750
1850
73.3hp*
88.9hp*
102.2hp*
*Estimated engine power for comparison only.
Transmission options
6-speed unsynchronized gear
12-speed partial power shift
18-speed partial power shift
Transmission
Typeunsynchronized gear
Gears6 forward and 2 reverse
Speeds
With 18.4-34 rear tires.

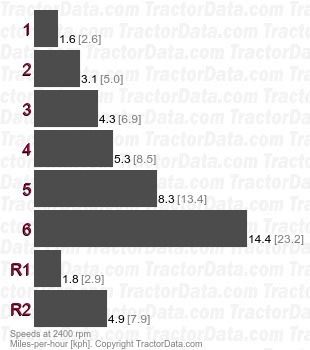

1750  unsynchronized gear speeds
Transmission
TransmissionOliver Hydra-Power
Typepartial power shift
Gears12 forward and 4 reverse
Clutchdry disc
Six gears (1-6) with two-range Hydra-Power power shift. Hydra-Power provdes a lower ratio and clutchless shifting between the Hydra-Power gear or direct drive.
Speeds
1750 Hydra-Power partial power shift speeds
Transmission
TransmissionHydraul-Shift
Typepartial power shift
Gears18 forward and 6 reverse
Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive.
