Oliver 1750 Tests


Oliver 1750 tractor photo
1966 - 1969
50 Series
Row-Crop tractor
Series map:
1650
1750
1850
73.3hp*
88.9hp*
102.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 961: gasoline Hydra-Power 2WD
NTTL 962: diesel Hydra-Power 2WD
Nebraska Tractor Test 961

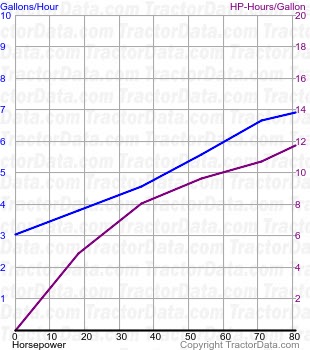

1750 fuel use from test 961
Nebraska Tractor Test 961
Gasoline Hydra-Power 2WD
5/22/1967
Link: Nebraska Tractor Test 961 file
PTO performance
Power at rated engine speed80.31 hp
59.9 kW
Fuel use7.0 gal/hour
26.5 l/hour
Drawbar performance
Max power67.05 hp
50.0 kW
Fuel use7.0 gal/hour
26.5 l/hour
Gear 4-Hydra used for power test.
Max pull9,697 lbs
4398 kg
Gear 2-Hydra used for pull test.
Nebraska Tractor Test 962

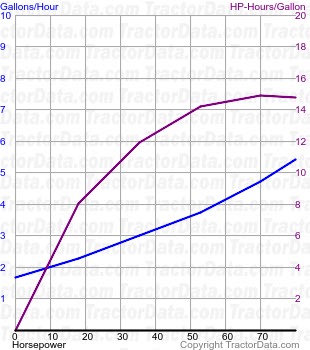

1750 fuel use from test 962
Nebraska Tractor Test 962
Diesel Hydra-Power 2WD
May 22 - June 12, 1967
Link: Nebraska Tractor Test 962 file
PTO performance
Power at rated engine speed80.05 hp
59.7 kW
Fuel use5.4 gal/hour
20.4 l/hour
Drawbar performance
Max power65.28 hp
48.7 kW
Fuel use5.3 gal/hour
20.1 l/hour
Gear 4-Hydra used for power test.
Max pull9,929 lbs
4503 kg
Gear 2-Hydra used for pull test.
