Oliver 1650 Transmission


Oliver 1650 tractor photo
1964 - 1969
50 Series
Row-Crop tractor
Series map:
1550
1650
1850 Wheatland
58.9hp*
73.3hp*
102.2hp*
*Estimated engine power for comparison only.
Transmission options
6-speed unsynchronized
12-speed two-speed power shift
18-speed partial power shift
Transmission
Transmissionhelical gear
Typeunsynchronized
Gears6 forward and 2 reverse
Clutch304.8mm dry disc
Speeds

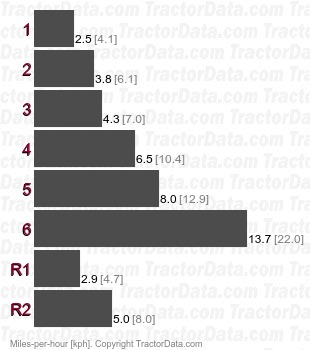

1650 helical gear unsynchronized speeds
Transmission
TransmissionHydra-Power
Typetwo-speed power shift
Gears12 forward and 4 reverse
Clutchdry disc
Speeds

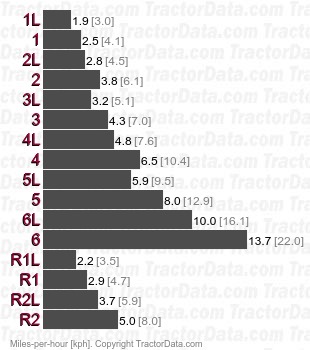

1650 Hydra-Power two-speed power shift speeds
Transmission
TransmissionHydraul-Shift
Typepartial power shift
Gears18 forward and 6 reverse
Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive.
