Oliver 1600 Series A Tests


Oliver 1600 Series A tractor photo
1962 - 1964
Model year
4-Digit Series
Row-Crop tractor
Series map:
1600
1800
66.7hp*
82.1hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 840: diesel 12-speed 2WD
NTTL 841: gasoline 12-speed 2WD
Nebraska Tractor Test 840
1600 Series A fuel use from test 840
Nebraska Tractor Test 840
Diesel 12-speed 2WD
May 29 - June 13, 1963
Link: Nebraska Tractor Test 840 file
PTO performance
Power at rated engine speed57.95 hp
43.2 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed54.79 hp
40.9 kW
Fuel use3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power46.90 hp
35.0 kW
Fuel use4.0 gal/hour
15.1 l/hour
Gear 4-HP used for power test.
Max pull8,401 lbs
3810 kg
Gear 1-HP used for pull test.
Nebraska Tractor Test 841

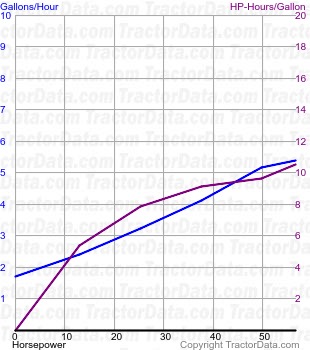

1600 Series A fuel use from test 841
Nebraska Tractor Test 841
Gasoline 12-speed 2WD
June 3 - 13, 1963
Link: Nebraska Tractor Test 841 file
PTO performance
Power at rated engine speed56.50 hp
42.1 kW
Fuel use5.4 gal/hour
20.4 l/hour
Power at rated PTO speed51.18 hp
38.2 kW
Fuel use5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power47.09 hp
35.1 kW
Fuel use5.2 gal/hour
19.7 l/hour
Gear 4-HP used for power test.
Max pull8,490 lbs
3851 kg
Gear 1-HP used for pull test.
