| | 1969 - 1971 |
| 55 Series | | Utility tractor | | Fiat built |
|
Series map:
1255
1355
42.8hp*
56.7hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed gear |
| 12-speed creeper |
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 19 qts
18.0 L
|

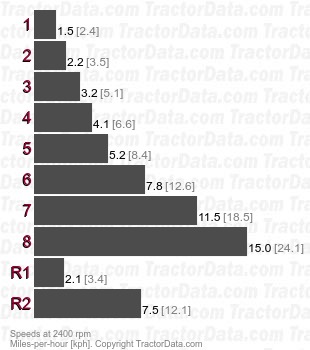

| Speeds |
| With 14.9-30 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 12 forward and 4 reverse
|

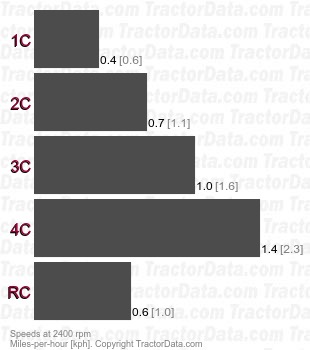

| Speeds |
|
