| | 1971 - 1975 |
| Utility tractor | | Fiat built |
|
Series map:
1265
1365
45.6hp*
61.1hp*
*Estimated engine power for comparison only.
| Transmission options |
| 6-speed partially synchronized |
| 9-speed creeper |
| Transmission |
| Type | partially synchronized
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 254mm dry disc
|
| Oil capacity | 18 qts
17.0 L
|
| Synchronized shifts between gears 2-3 and 5-6. |
| Speeds |
| With 13.6-28 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 9 forward and 3 reverse
|

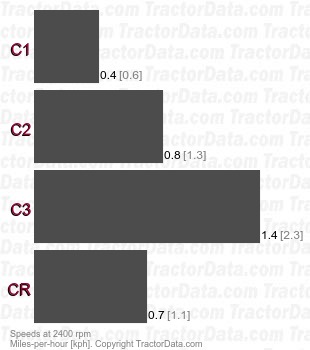

| Speeds |
| With 13.6-28 rear tires. |
|
