| | 1954 - 1958 |
| Row-Crop tractor |
|
Series map:
Super 66
Super 77
Super 88
36.5hp*
48.9hp*
62.0hp*
*Estimated engine power for comparison only.
| Engine options |
| Waukesha-Oliver 3.5L 6-cyl gasoline |
| Oliver 3.5L 6-cyl diesel |
| Waukesha-Oliver 3.5L 6-cyl LP-gas |
| Engine Detail |
| Waukesha-Oliver |
| gasoline |
| 6-cylinder |
| liquid-cooled |
| Displacement | 216 ci
3.5 L
|
| Bore/Stroke | 3.50x3.75 inches
89 x 95 mm
|
| Air cleaner | oil bath
|
| Pre-heating | coolant heater OptOptional
|
| Compression | 7.00:1
|
| Rated RPM | 1600
|
| Firing order | 1-5-3-6-2-4
|
| Starter volts | 6 (early)
|
| | 12 (late)
|

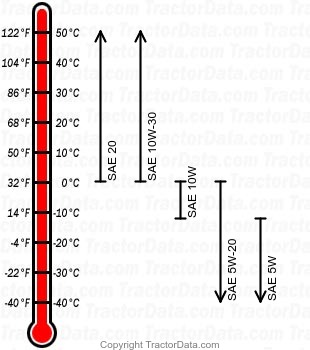

| Oil capacity | 5 qts
4.7 L
|
| Coolant capacity | 18 qts
17.0 L
|

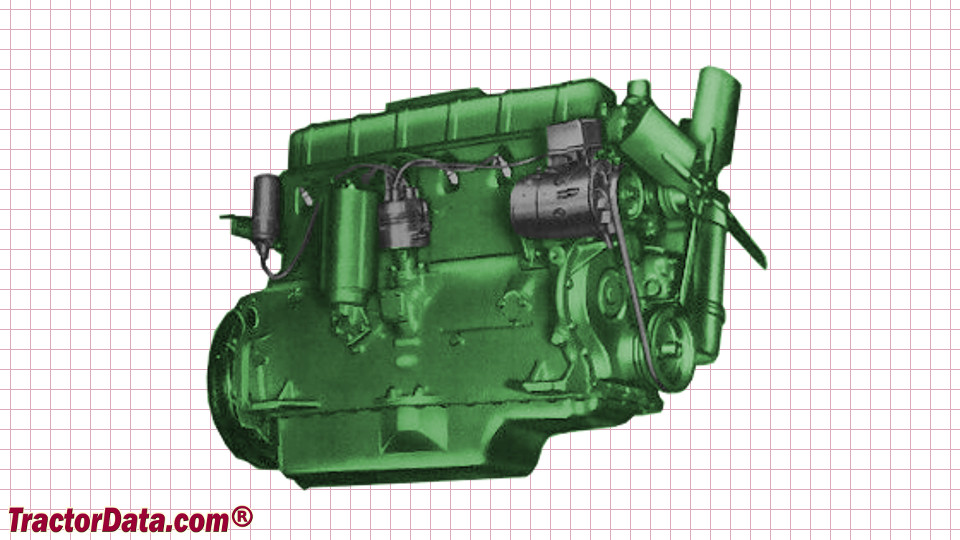

| Oliver Super 77 Engine |
 |
| Engine Detail |
| Oliver |
| diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 216 ci
3.5 L
|
| Bore/Stroke | 3.50x3.75 inches
89 x 95 mm
|
| Air cleaner | oil bath
|
| Compression | 16:1
|
| Rated RPM | 1600
|
| Starter volts | 12
|

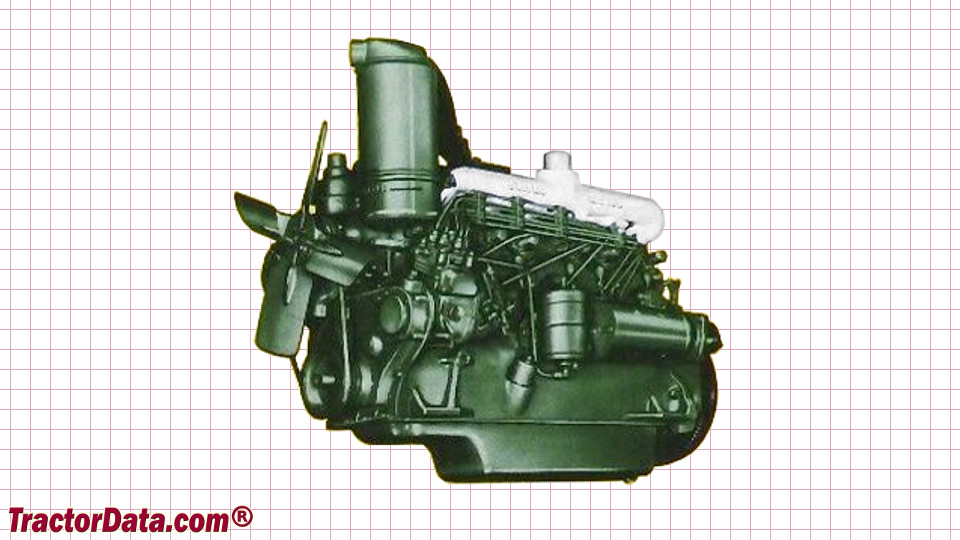

| Oliver Super 77 Engine |
 |
| Engine Detail |
| Waukesha-Oliver |
| LP-gas |
| 6-cylinder |
| liquid-cooled |
| Displacement | 216 ci
3.5 L
|
| Bore/Stroke | 3.50x3.75 inches
89 x 95 mm
|
| Air cleaner | oil bath
|
| Rated RPM | 1600
|
