| | 1935 - 1948 |
| Row-Crop tractor |
|
Series map:
70
33.7hp*
*Estimated engine power for comparison only.
| Transmission options |
| 4-speed gear |
| 6-speed gear |
| Transmission |
| Type | gear
|

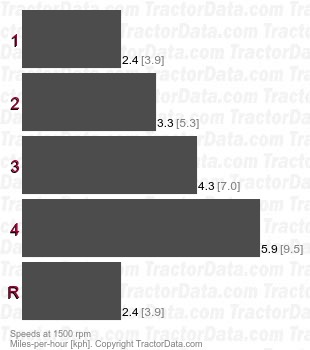

| Gears | 4 forward and 1 reverse
|
| Clutch | 229mm dry disc
|
| Oil capacity | 26 qts
24.6 L
|
| Speeds |
|
| Transmission |
| Type | gear
|

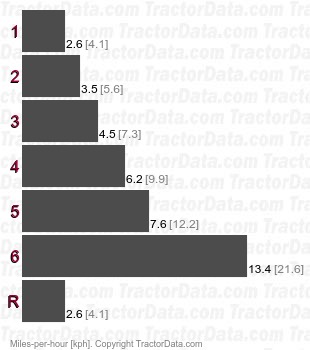

| Gears | 6 forward and 1 reverse
|
| The six-speed transmission was introduced on the "streamlined" model 70 in 1937. The top two gears were locked out if the tractor was equipped with steel wheels. |
| Speeds |
|
