New Holland 8560



New Holland 8560 tractor photo
1996 - 1999
60 Gemini Series
Row-Crop tractor
Series map:
8360
8560
127.8hp*
144.4hp*
*Estimated engine power for comparison only.
Production
ManufacturerNew Holland
Row-Crop tractor
Built in England
Original price$73,000 (1999)
Variants
M160similar Fiat model
New Holland 8560 Engine
New Holland 7.5L 6-cyl diesel
Engine details ...
New Holland 8560 Transmissions
17-speed partial power shift
18-speed partial power shift
Transmission details ...
New Holland 8560 Power
PTO (claimed)130 hp
96.9 kW
Drawbar (tested)120 hp
89.5 kW
PTO (tested)143 hp
106.6 kW
Performance test details ...
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lockRear or front and rear (4WD) with push-button operation. Manual and automatic modes. (2WD)
Steeringhydrostatic power
Differential hydraulic wet disc brakes
Cab standard.
Photos
No photos of the New Holland 8560 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel85 gal
321.7 L
Hydraulic system26.4 gal
99.9 L
Front hubs2.3 qts (each)
2.2 L
Front diff.3.7 qts
3.5 L
Hydraulics
Typeclosed center load sensing
Capacity26.4 gal
99.9 L
Pressure2755 psi
190.0 bar
Valves2 to 4
Pump flow26 gpm
98.4 lpm
Steering flow16.4 gpm
62.1 lpm
Steering press.2465 psi
170.0 bar
Tractor hitch
Rear TypeII/III
Rear lift (at 24"/610mm)12,000 lbs
5443 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase108.3 inches (2WD)
275 cm
 107.2 inches (4WD)
272 cm
Weight12386 to 13596 pounds
Front tire11.00-16
Rear tire18.4R38 (2WD)
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps70
 100 (with cab)
Batteries2
Battery CCA900
Battery volts12
References

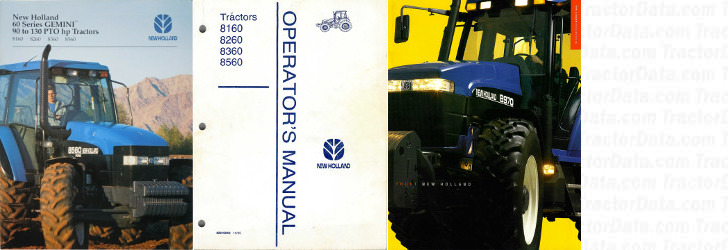

8560 references literature
60 Series Gemini 90 to 130 PTO hp Tractors published in 1996, by New Holland
Operator's Manual Tractors 8160, 8260, 8360 and 8560 (42816040) published in 1995
North American Buyer's Guide published in 1997, by New Holland
