New Holland 8560 Engine



New Holland 8560 tractor photo
1996 - 1999
60 Gemini Series
Row-Crop tractor
Series map:
8360
8560
127.8hp*
144.4hp*
*Estimated engine power for comparison only.
Engine Detail
New Holland Genesis
turbocharged diesel
6-cylinder
liquid-cooled
Displacement456 ci
7.5 L
Bore/Stroke4.5x5.0 inches
114 x 127 mm
Compression17.5:1
Rated RPM2300
Idle RPM700-2530
Operating RPM1500-2300
Torque RPM1600
Firing order1-5-3-6-2-4
Starter volts12
Starter power4.9 hp
3.7 kW
Coolant capacity27.5 qts
26.0 L
Intake valve clearance0.016 inches (cold)
0.406 mm
Exhaust valve clearance0.018 inches (cold)
0.457 mm
Engine Oil

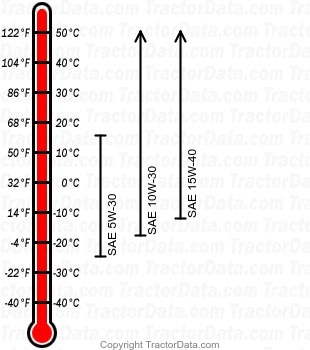

8560 diesel engine oil chart
Oil capacity20.8 qts
19.7 L
