New Holland 8160
| | 1996 - 1999 |
| 60 Gemini Series | | Row-Crop tractor |
|
Series map:
8160
8260
100.0hp*
111.1hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | New Holland
|
| Row-Crop tractor |
| Built in England |
| Original price | $44,000 (1999)
|
| Variants |
| M100 | similar Fiat model
|
| New Holland 8160 Power |
| PTO (claimed) | 90 hp
67.1 kW
|
| Mechanical |
| Drive | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Differential lock | Rear or front and rear (4WD) with push-button operation. Manual and automatic modes. (2WD)
|
| Steering | hydrostatic power
|
| Differential hydraulic wet disc brakes |
| Two-post ROPS. Optional cab. |
| Capacity |
| Fuel | 85 gal
321.7 L
|
| Hydraulic system | 23.7 gal (18-speed)
89.7 L
|
| | 19.2 gal (23-speed)
72.7 L
|
| Front hubs | 1.8 qts (each)
1.7 L
|
| Front diff. | 2.3 qts
2.2 L
|
| Hydraulics |
| Type | closed center load sensing
|
| Capacity | 23.7 gal (18-speed)
89.7 L
|
| | 19.2 gal (23-speed)
72.7 L
|
| Pressure | 2755 psi
190.0 bar
|
| Valves | 2 to 4
|
| Pump flow | 26 gpm
98.4 lpm
|
| Steering flow | 15.6 gpm
59.0 lpm
|
| Steering press. | 2465 psi
170.0 bar
|
| Tractor hitch |
| Rear Type | II
|
| Rear lift (at 24"/610mm) | 8,500 lbs
3855 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 70
|
| | 100 (with cab)
|
| Batteries | 2
|
| Battery CCA | 900
|
| Battery volts | 12
|

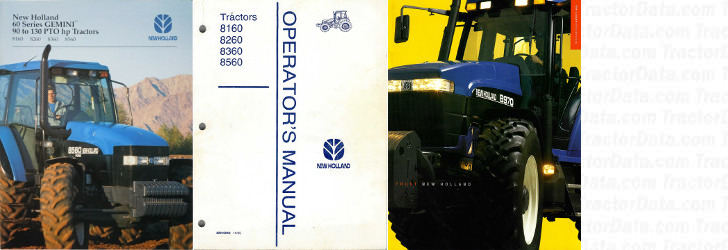

| References |
 |
| 60 Series Gemini 90 to 130 PTO hp Tractors published in 1996, by New Holland |
| Operator's Manual Tractors 8160, 8260, 8360 and 8560 (42816040) published in 1995 |
| North American Buyer's Guide published in 1997, by New Holland |
