Ford 6610 Mark III Transmission


Ford 6610 Mark III tractor photo
1988 - 1991
10 Mark III Series
Series map:
6410
6610
6810
59.7kw
64.1kw
67.1kw
Transmission
TransmissionDual Power
Gears16 forward and 8 reverse
Clutch330mm disc
Four synchronized gears in two ranges, plus reverse range, with two-speed Dual Power power shift. Optional creeper range.

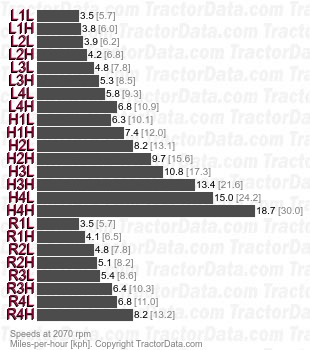

Speeds
With 16.9-38 rear tires.
6610 Mark III Dual Power  speeds
Shift Pattern
Ford 6610 transmission controls
