Ford 4600SU Tests
|
|
| Tractor Tests | |
| NTTL 1001: gasoline 8-speed 2WD | |
| NTTL 1223: diesel 8-speed 2WD |

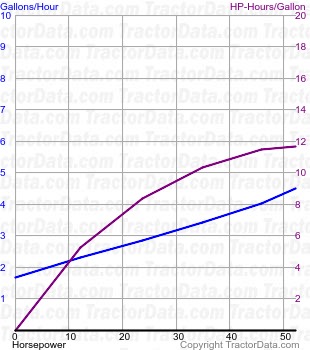

| Nebraska Tractor Test 1001 | |||
| |||
| Nebraska Tractor Test 1001 | |
| Gasoline 8-speed 2WD November 13 - 25, 1968 Link: Nebraska Tractor Test 1001 file | |
| PTO performance | |
| Power at rated engine speed | 52.18 hp 38.9 kW |
| Fuel use | 4.5 gal/hour 17.0 l/hour |
| Power at rated PTO speed | 47.14 hp 35.2 kW |
| Fuel use | 3.9 gal/hour 14.8 l/hour |
| Drawbar performance | |
| Max power | 44.81 hp 33.4 kW |
| Fuel use | 4.6 gal/hour 17.4 l/hour |
| Gear 4 used for power test. | |
| Max pull | 6,096 lbs 2765 kg |
| Gear 2 used for pull test. | |
| Nebraska Tractor Test 1223 | |||
| |||
| Nebraska Tractor Test 1223 | |
| Diesel 8-speed 2WD September 20 - October 4, 1976 Link: Nebraska Tractor Test 1223 file | |
| PTO performance | |
| Power at rated engine speed | 52.44 hp 39.1 kW |
| Fuel use | 3.7 gal/hour 14.0 l/hour |
| Power at rated PTO speed | 46.31 hp 34.5 kW |
| Fuel use | 3.2 gal/hour 12.1 l/hour |
| Drawbar performance | |
| Max power | 43.07 hp 32.1 kW |
| Fuel use | 3.6 gal/hour 13.6 l/hour |
| Gear 4 used for power test. | |
| Max pull | 6,342 lbs 2876 kg |
| Gear 2 used for pull test. | |
