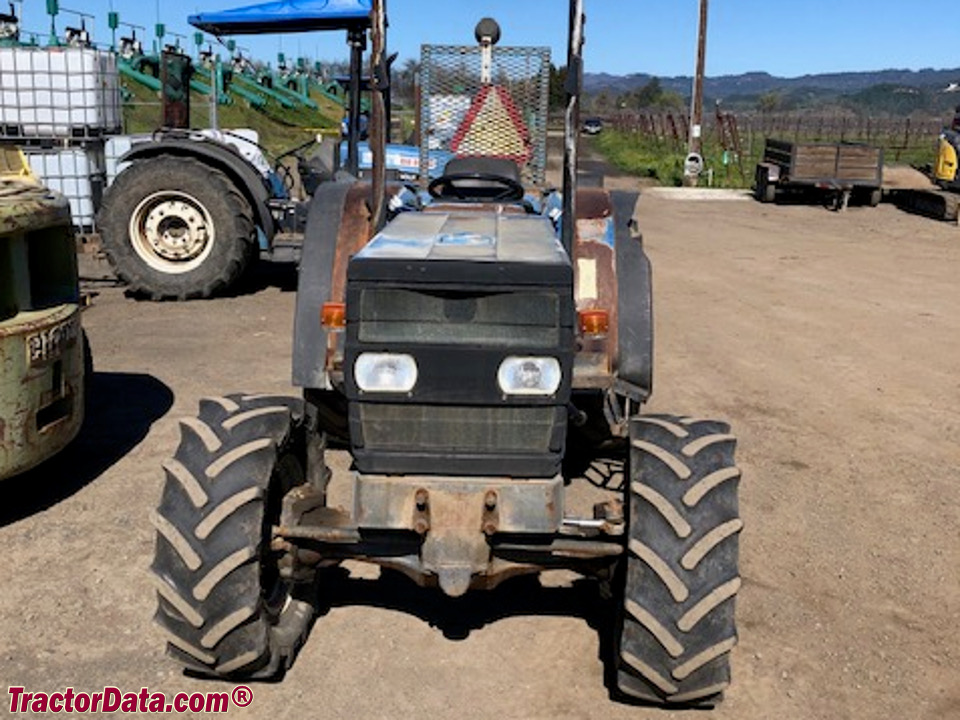

Ford 4430
| | 1992 - 1998 |
| Orchard/Vineyard tractor | | Fiat built |
|
Series map:
4230
4430
68.9hp*
77.8hp*
*Estimated engine power for comparison only.
| Production |
| Distributor | Ford
|
| Manufacturer | Fiat
|
| Orchard/Vineyard tractor |
| Original price was $27,000 in 1998 |
| The Ford/New Holland 4430 is the same as the Fiat 82-86. |
| Ford 4430 Power |
| PTO (claimed) | 70 hp
52.2 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | mechanical rear
|
| Power steering |
| Mechanical wet disc brakes |
| Two-post mid-mount ROPS. Cab optional with air-conditioning. |
| Capacity |
| Fuel | 13.7 gal
51.9 L
|
| Hydraulic system | 11.3 gal
42.8 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 11.3 gal
42.8 L
|
| Pressure | 2740 psi
188.9 bar
|
| Valves | 2 or 3
|
| Pump flow | 11 gpm
41.6 lpm
|
| Steering flow | 8.1 gpm
30.7 lpm
|
| Steering press. | 1450 psi
100.0 bar
|
| Tractor hitch |
| Rear Type | II
|
| Control | position control and lower-link draft sensing
|
| Rear lift | 5931 lbs
2690 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| ROPS Charging amps | 33
|
| Cab Charging amps | 65
|
| Battery volts | 12
|
| References |
 |
| 45 to 70 hp Narrow Tractors published in 1992, by Ford |
| Ford Narrow Tractors published in 1995, by New Holland |
| 45 to 70 PTO hp Narrow Tractors published in 1996, by New Holland |
| North American Buyer's Guide published in 1997, by New Holland |
