Ford-New Holland 3910 Tests
|
|
Note: the Ford-New Holland model 3910 is the same as the Ford 3910. The following data is from the 3910 listing. |
| Tractor Tests | |
| NTTL 1493: diesel 8x2 2WD | |
| NTTL 1494: diesel 8x4 2WD |
| Nebraska Tractor Test 1493 | |||
| |||
| Nebraska Tractor Test 1493 | |

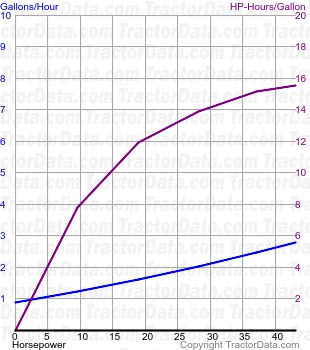

| Diesel 8x2 2WD September 14 - 26, 1983 Link: Nebraska Tractor Test 1493 file | |
| PTO performance | |
| Power at rated engine speed | 42.62 hp 31.8 kW |
| Fuel use | 2.8 gal/hour 10.6 l/hour |
| Power at rated PTO speed | 40.39 hp 30.1 kW |
| Fuel use | 2.5 gal/hour 9.5 l/hour |
| Drawbar performance | |
| Max power | 35.62 hp 26.6 kW |
| Fuel use | 2.7 gal/hour 10.2 l/hour |
| Gear 5 used for power test. | |
| Nebraska Tractor Test 1494 | |||
| |||
| Nebraska Tractor Test 1494 | |

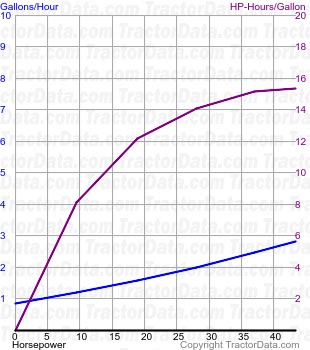

| Diesel 8x4 2WD September 14 - 26, 1983 Link: Nebraska Tractor Test 1494 file | |
| PTO performance | |
| Power at rated engine speed | 42.67 hp 31.8 kW |
| Fuel use | 2.8 gal/hour 10.6 l/hour |
| Power at rated PTO speed | 41.16 hp 30.7 kW |
| Fuel use | 2.6 gal/hour 9.8 l/hour |
| Drawbar performance | |
| Max power | 35.06 hp 26.1 kW |
| Fuel use | 2.7 gal/hour 10.2 l/hour |
| Gear 5 used for power test. | |
| Max pull | 4,934 lbs 2238 kg |
| Gear 2 used for pull test. | |
