| | 1941 - 1952 |
| Standard-tread tractor |
|
| Engine options |
| J.I. Case 2.5L 4-cyl gasoline |
| J.I. Case 2.7L 4-cyl gasoline |
| Engine Detail |
| J.I. Case |
| gasoline |
| 4-cylinder |
| liquid-cooled |
| Original engine, used until 1953. |
| Displacement | 153.9 ci
2.5 L
|
| Bore/Stroke | 3.50x4.00 inches
89 x 102 mm
|
| Air cleaner | oil bath
|
| Rated RPM | 1550
|
| Starter volts | 6
|
| Coolant capacity | 16 qts
15.1 L
|
| Engine Detail |
| J.I. Case |
| gasoline |
| 4-cylinder |
| liquid-cooled |
| The larger, 2.7L, engine was introduced in 1953 on the J.I. Case S. |
| Displacement | 165.1 ci
2.7 L
|
| Bore/Stroke | 3.625x4.00 inches
92 x 102 mm
|
| Air cleaner | oil bath
|
| Rated RPM | 1550
|
| Starter volts | 6
|

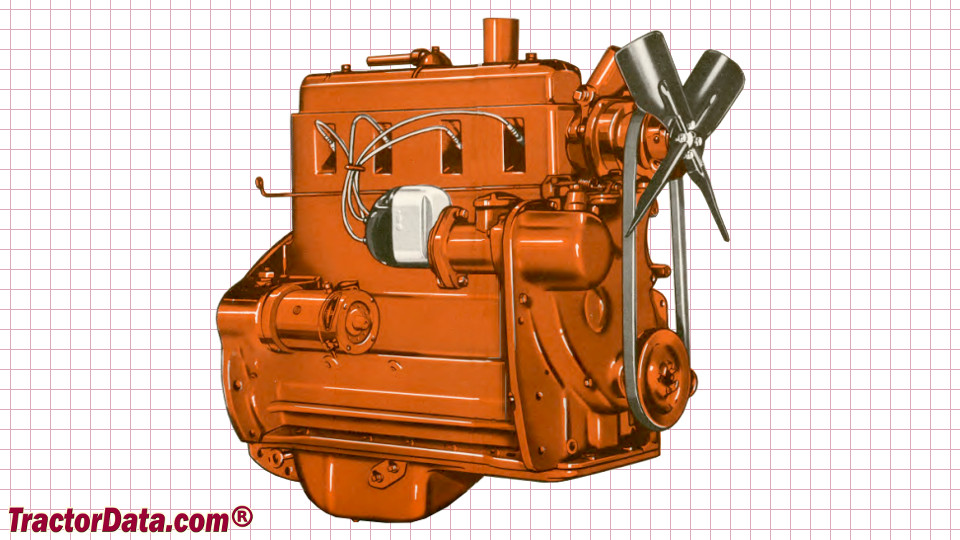

| J.I. Case S Engine |
 |
