| | 1983 - 1987 |
| Ten Compact Series | | Compact Utility tractor | | Shibaura built |
|
Series map:
1910
2110
32.0hp
38.0hp
| Transmission options |
| 12-speed unsynchronized gear |
| 12-speed partially synchronized |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 240mm dry disc
|
| Oil capacity | 34.3 qts
32.5 L
|
| Three gears, plus reverse, in four ranges. |

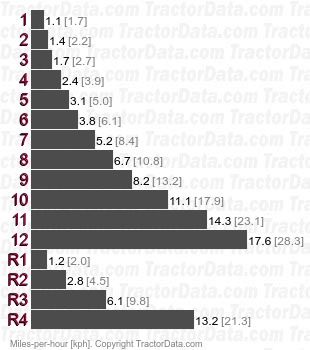

| Speeds |
| With 13.6-28 rear tires. |
|
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|

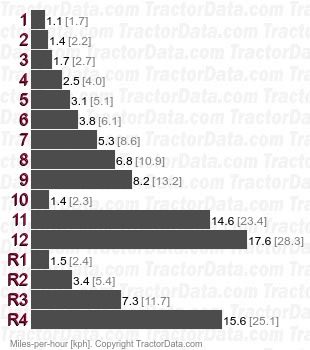

| Speeds |
|
