Ford 2110 Tests


Ford 2110 tractor photo
1983 - 1987
Ten Compact Series
Compact Utility tractor
Shibaura built
Series map:
1910
2110
32.0hp
38.0hp
Tractor Tests
NTTL 1509: diesel manual 2WD
NTTL 1510: diesel synchromesh 2WD
Nebraska Tractor Test 1509

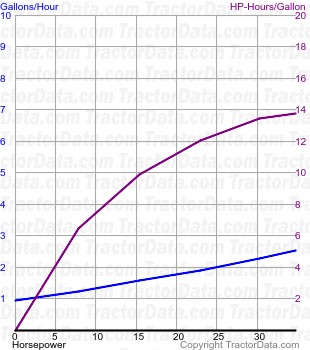

2110 fuel use from test 1509
Nebraska Tractor Test 1509
Diesel manual 2WD
March 30 - April 13, 1984
Link: Nebraska Tractor Test 1509 file
PTO performance
Power at rated engine speed34.79 hp
25.9 kW
Fuel use2.5 gal/hour
9.5 l/hour
Power at rated PTO speed34.91 hp
26.0 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power28.84 hp
21.5 kW
Fuel use2.4 gal/hour
9.1 l/hour
Gear 3-2 used for power test.
Max pull3,868 lbs
1754 kg
Gear 2-2 used for pull test.
Nebraska Tractor Test 1510

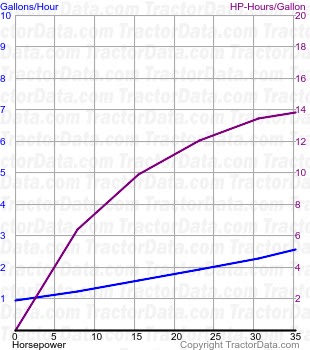

2110 fuel use from test 1510
Nebraska Tractor Test 1510
Diesel synchromesh 2WD
March 30 - April 9, 1984
Link: Nebraska Tractor Test 1510 file
PTO performance
Power at rated engine speed35.11 hp
26.2 kW
Fuel use2.5 gal/hour
9.5 l/hour
Power at rated PTO speed35.56 hp
26.5 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power30.10 hp
22.4 kW
Fuel use2.6 gal/hour
9.8 l/hour
Gear 3-2 used for power test.
Max pull3,728 lbs
1691 kg
Gear 2-3 used for pull test.
