Ford 1510 Tests


Ford 1510 tractor photo
1983 - 1986
Ten Compact Series
Compact Utility tractor
Shibaura built
Series map:
1310
1510
1710
19.0hp
22.0hp
26.0hp
Tractor Tests
NTTL 1500: diesel 12/4 gear 2WD
NTTL 1501: diesel 12/4 synchro 2WD
Nebraska Tractor Test 1500

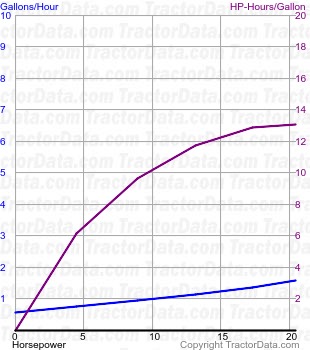

1510 fuel use from test 1500
Nebraska Tractor Test 1500
Diesel 12/4 gear 2WD
October 17 - 25, 1983
Link: Nebraska Tractor Test 1500 file
PTO performance
Power at rated engine speed19.72 hp
14.7 kW
Fuel use1.5 gal/hour
5.7 l/hour
Power at rated PTO speed20.45 hp
15.2 kW
Fuel use1.5 gal/hour
5.7 l/hour
Drawbar performance
Max power16.15 hp
12.0 kW
Fuel use1.4 gal/hour
5.3 l/hour
Gear 3-3 used for power test.
Max pull1952 lbs
885 kg
Gear 2-3 used for pull test.
Nebraska Tractor Test 1501

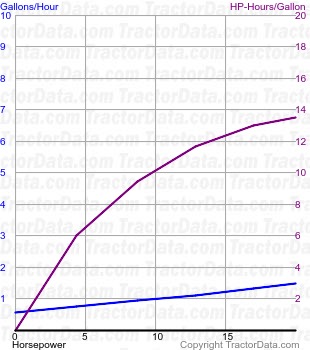

1510 fuel use from test 1501
Nebraska Tractor Test 1501
Diesel 12/4 synchro 2WD
October 18 - 27, 1983
Link: Nebraska Tractor Test 1501 file
PTO performance
Power at rated engine speed19.98 hp
14.9 kW
Fuel use1.5 gal/hour
5.7 l/hour
Power at rated PTO speed18.68 hp
13.9 kW
Fuel use1.4 gal/hour
5.3 l/hour
Drawbar performance
Max power16.30 hp
12.2 kW
Fuel use1.5 gal/hour
5.7 l/hour
Gear 3-3 used for power test.
Max pull1900 lbs
861 kg
Gear 3-1 used for pull test.
