White 2-105 Transmission


White 2-105 tractor photo
1974 - 1982
Field Boss Series
Row-Crop tractor
Series map:
2-85
2-105
94.4hp*
116.7hp*
*Estimated engine power for comparison only.
Transmission options
6-speed unsynchronized gear
18-speed three-speed power shift
Transmission
Typeunsynchronized gear
Gears6 forward and 2 reverse
Clutch330.2mm cerametallic disc
Oil capacity43 qts
40.7 L
Transmission
TransmissionHydraul-Shift
Typethree-speed power shift
Gears18 forward and 6 reverse
Six forward and two reverse gears with an over and under power shift for each gear.

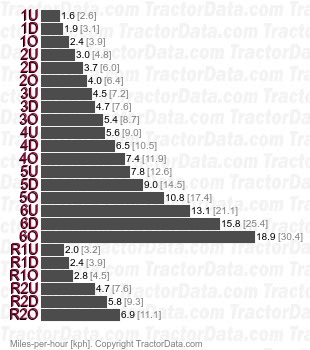

Speeds
2-105 Hydraul-Shift three-speed power shift speeds
Shift Pattern
White 2-105 transmission controls
