White 2-85


White 2-85 tractor photo
1976 - 1982
Field Boss Series
Row-Crop tractor
Series map:
2-70
2-85
2-105
77.8hp*
94.4hp*
116.7hp*
*Estimated engine power for comparison only.
Production
ManufacturerWhite
Row-Crop tractor
Original price was $31,000 in 1982
White 2-85 Engine
Perkins 5.8L 6-cyl diesel
Fuel tank32.3 gal
122.3 L
 20 gal*Optional tank.
75.7 L
 78 gal*Optional fender tanks capacity.
295.2 L
Engine details ...
White 2-85 Transmissions
6-speed unsynchronized gear
18-speed three-speed power shift
Transmission details ...
White 2-85 Power
PTO (claimed)85 hp
63.4 kW
Drawbar (tested)71.33 hp
53.2 kW
PTO (tested)85.54 hp
63.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic dry disc brakes
Open operator station. Two-post fixed ROPS available. Cab available with air-conditioning.
Hydraulics
Typeclosed center
Pressure2200 psi
151.7 bar
Valves1
Pump flow20 gpm
75.7 lpm
Tractor hitch
Rear TypeII
 III OptOptional
Controldraft sensing
Rear lift (at 24"/610mm)4000 lbs
1814 kg
 6000 lbsOptOptional
2721 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase103 inches
261 cm
Weight11350 to 11700 pounds
Front tire9.5L-15
Rear tire18.4-38
Full dimensions and tires ...

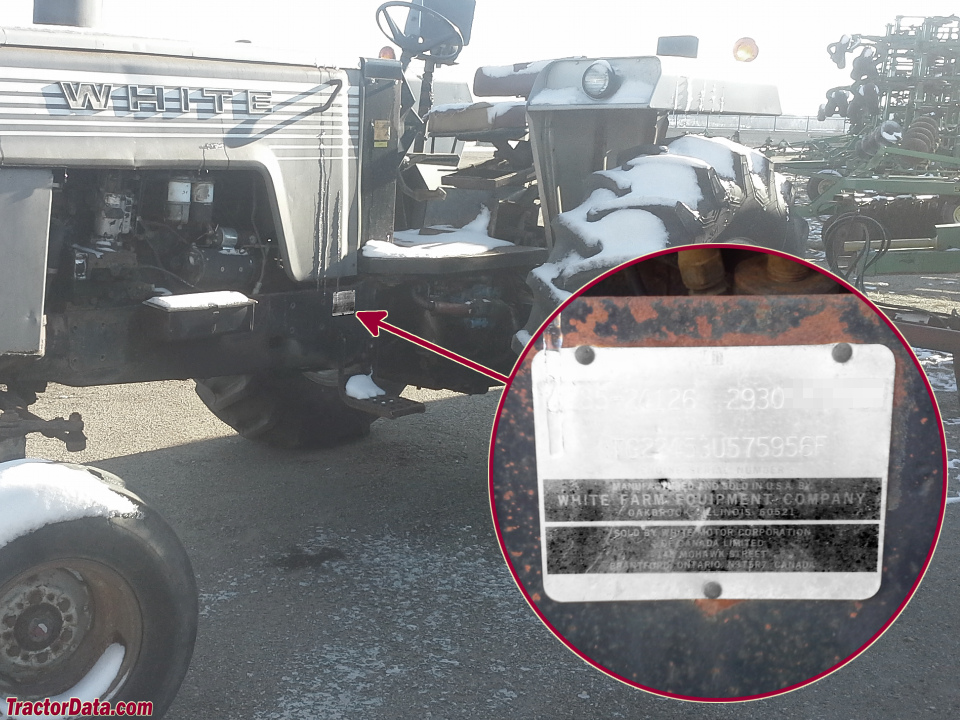

2-85 Serial Number Location
White 2-85 serial number location
Left side of tractor frame, just forward of operator platform.
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References
2-85 references literature
New White Tractor Loaders published in 1978
Loaders published in 1979, by White
2-105/2-85 Field Bosses published by White
1976 Farm Equipment Line published by White
1977 Farm Equipment Line published by White
1978 Farm Equipment Line published by White
1979 Farm Equipment Line published by White
