Tractors > John Deere > 3140

John Deere 3140



John Deere 3140 tractor photo
1980 - 1987
Model year
Utility tractor
Series map:
3040
3140
66.0kw
72.3kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 3140 Engine
John Deere 5.9L 6-cyl diesel
Engine details ...
John Deere 3140 Transmission
16-speed Power Syncron
Transmission details ...
John Deere 3140 Power
Engine97 hp
72.3 kW
PTO (claimed)84 hp
62.6 kW
Mechanical
Drive4x2 2WD
 4x4 HFWD 4WD
 4x4 MFWD 4WD
Power steering
Wet disc brakes
Cab standard.
Photos
John Deere 3140
John Deere 3140 photos...
Capacity
Fuel33.3 gal
126.0 L
Hydraulic system15.85 gal
60.0 L
Hydraulics
Typeclosed center
Capacity15.85 gal
60.0 L
Valves1
Pump flow12.4 gpm
46.9 lpm
Tractor hitch
Rear TypeII
Rear lift7683 lbs
3485 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540/1000
Engine RPM540@2400
 1000@2400
Dimensions & Tires
2WD Wheelbase100.4 inches
255 cm
MFWD Wheelbase101.7 inches
258 cm
HFWD Wheelbase100.3 inches
254 cm
Weight8896 to 9932 pounds
Front tire10.00-16
2WD Rear tire18.4/15-38
Full dimensions and tires ...

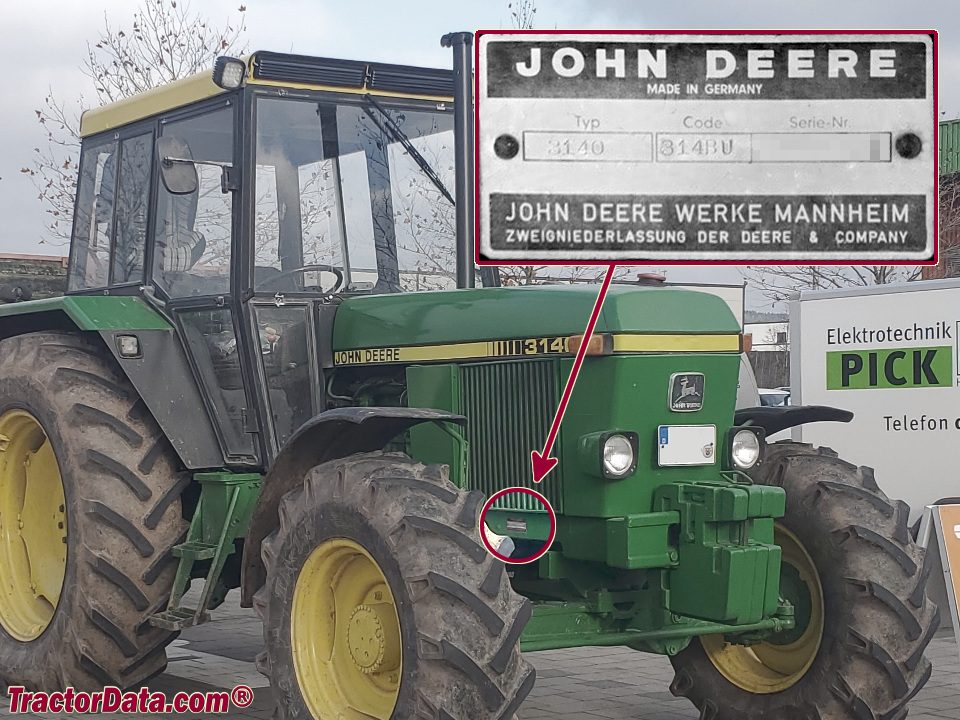

3140 Serial Number Location
John Deere 3140 serial number location
Serial number plate on the right side of the 3140 frame, above the front axle.
3140 Serial Numbers
1980358903
1981393578
1982433669

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging amps55
Batteries2
Battery volts12
Battery AH88
References
3140 references literature
The New 3140 published in 1979, by John Deere
New Profiles of Performance published in 1979, by John Deere
Move up to John Deere... published in 1981
