J.I. Case 4890 Transmission


J.I. Case 4890 tractor photo
1979 - 1983
4WD 90 Series
Four-wheel Drive (4WD) tractor
Series map:
4690
4890
261.0hp
300.0hp
Transmission
Transmissionpartial powershift
Gears12 forward and 4 reverse
Clutchhydraulic dry disc
Oil capacity52 qts
49.2 L
Four ranges with three power shifts in each range.

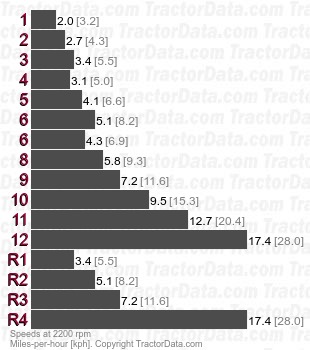

Speeds
With 23.1-30 tires.
4890 partial powershift  speeds
Shift Pattern
J.I. Case 4890 transmission controls
