Tractors > J.I. Case > 4690

J.I. Case 4690 Tests



J.I. Case 4690 tractor photo
1979 - 1983
4WD 90 Series
Four-wheel Drive (4WD) tractor
Series map:
4490
4690
4890
210.0hp
261.0hp
300.0hp
Nebraska Tractor Test 1329

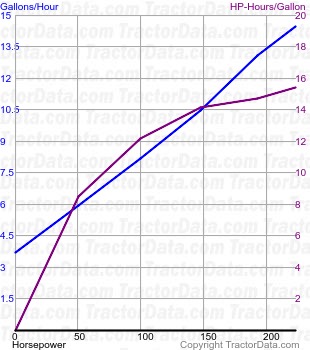

4690 fuel use from test 1329
Nebraska Tractor Test 1329
Diesel 12-speed 4WD
October 18 - 26, 1979
Link: Nebraska Tractor Test 1329 file
PTO performance
Power at rated engine speed219.62 hp
163.8 kW
Fuel use14.4 gal/hour
54.5 l/hour
Drawbar performance
Max power189.75 hp
141.5 kW
Fuel use14.2 gal/hour
53.7 l/hour
Gear 8 used for power test.
Max pull24564 lbs
11142 kg
