J.I. Case 4490 Transmission


J.I. Case 4490 tractor photo
1979 - 1983
4WD 90 Series
Four-wheel Drive (4WD) tractor
Series map:
4490
4690
210.0hp
261.0hp
Transmission
Typethree-speed power shift
Gears12 forward and 4 reverse
Clutchhydraulic wet disc
Three power shift gears, plus reverse gear, in four ranges.

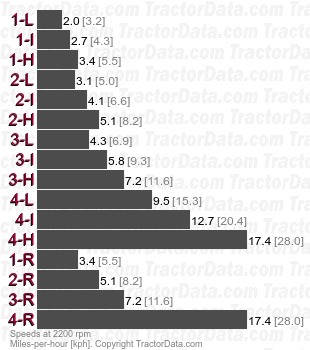

Speeds
With 23.1-30 tires.
4490  three-speed power shift speeds
Shift Pattern
J.I. Case 4490 transmission controls
