J.I. Case 4490 Tests


J.I. Case 4490 tractor photo
1979 - 1983
4WD 90 Series
Four-wheel Drive (4WD) tractor
Series map:
4490
4690
210.0hp
261.0hp
Nebraska Tractor Test 1328

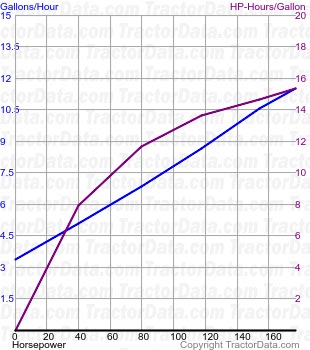

4490 fuel use from test 1328
Nebraska Tractor Test 1328
Diesel 12-speed 4WD
October 15 - 20, 1979
Link: Nebraska Tractor Test 1328 file
PTO performance
Power at rated engine speed175.20 hp
130.6 kW
Fuel use11.5 gal/hour
43.5 l/hour
Drawbar performance
Max power150.14 hp
112.0 kW
Fuel use11.3 gal/hour
42.8 l/hour
Gear 8 used for power test.
Max pull21400 lbs
9707 kg
Gear 1-I used for pull test.
