Tractors > J.I. Case > 3294

J.I. Case 3294 Tests



J.I. Case 3294 tractor photo
1984 - 1985
94 Series
Row-Crop tractor
Series map:
3294
197.0hp
Nebraska Tractor Test 1528

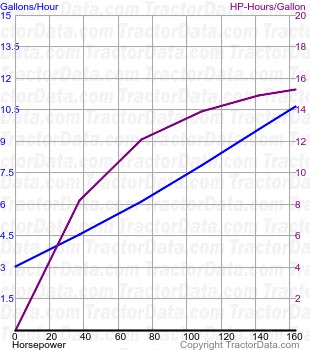

3294 fuel use from test 1528
Nebraska Tractor Test 1528
Diesel 12-speed 4WD
June 12 - 22, 1984
Link: Nebraska Tractor Test 1528 file
PTO performance
Power at rated engine speed162.63 hp
121.3 kW
Fuel use10.6 gal/hour
40.1 l/hour
Drawbar performance
Max power140.79 hp
105.0 kW
Fuel use10.4 gal/hour
39.4 l/hour
Gear 2-3 used for power test.
Max pull16242 lbs
7367 kg
Gear 1-2 used for pull test.
