J.I. Case 2870 Traction King Tests


J.I. Case 2870 Traction King tractor photo
1976 - 1979
Four-wheel Drive (4WD) tractor
Series map:
2670
2870
256.0hp
300.0hp
Nebraska Tractor Test 1241

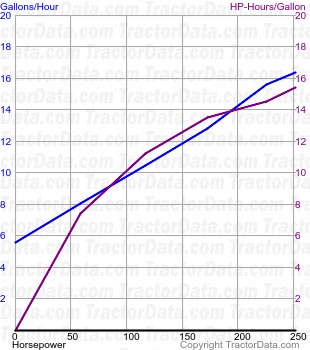

2870 Traction King fuel use from test 1241
Nebraska Tractor Test 1241
Diesel 12-speed 4WD
May 3 - 12, 1977
Link: Nebraska Tractor Test 1241 file
PTO performance
Power at rated engine speed252.10 hp
188.0 kW
Fuel use16.3 gal/hour
61.7 l/hour
Drawbar performance
Max power210.64 hp
157.1 kW
Fuel use16.2 gal/hour
61.3 l/hour
Gear 3-Intermediate used for power test.
Max pull26,386 lbs
11968 kg
Gear 1I used for pull test.
