J.I. Case 2094 Transmission


J.I. Case 2094 tractor photo
1984
94 Series
Row-Crop tractor
Series map:
2094
2294
127.0hp
154.0hp
Transmission
Typethree-speed power shift
Gears12 forward and 3 reverse
Oil capacity100 qts
94.6 L
Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.

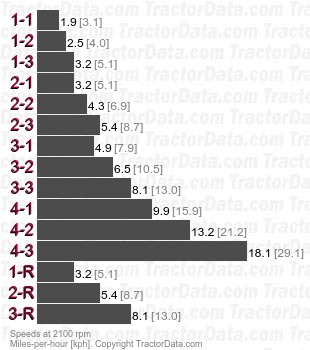

Speeds
With 18.4x38 rear tires.
2094  three-speed power shift speeds
Shift Pattern
J.I. Case 2094 transmission controls
