J.I. Case 2090 Transmission


J.I. Case 2090 tractor photo
1979 - 1983
90 Series
Row-Crop tractor
Series map:
2090
2290
120.0hp*
143.3hp*
*Estimated engine power for comparison only.
Transmission options
12-speed partial power shift
8-speed
Transmission
Typepartial power shift
Gears12 forward and 3 reverse
Four gears and reverse with a low-medium-high power shift.
Speeds

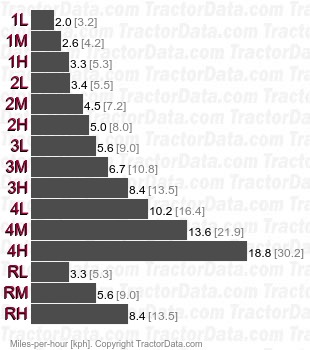

2090  partial power shift speeds
Transmission
Gears8 forward and 2 reverse
Four gears with low, high, and reverse ranges.
Speeds

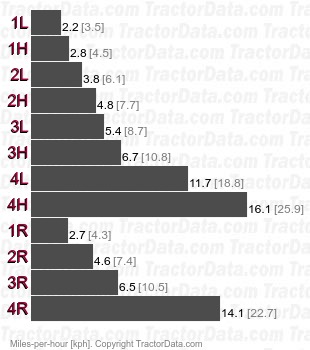

2090   speeds
Shift Pattern
J.I. Case 2090 transmission controls
