J.I. Case 1390


J.I. Case 1390 tractor photo
1980 - 1983
90 Series
Utility tractor
Series map:
1290
1390
1490
58.9hp*
66.7hp*
83.0hp
Production
ManufacturerJ.I. Case
Utility tractor
Built in Meltham Mills, Huddersfield, England
Original price$22,100 (1983)
J.I. Case 1390 Engine
J.I. Case 3.6L 4-cyl diesel
Engine details ...
J.I. Case 1390 Power
PTO (claimed)60 hp
44.7 kW
Drawbar (tested)50.26 hp
37.5 kW
PTO (tested)60.59 hp
45.2 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Steeringhydrostatic power
Mechanical drum brakes
Two-post ROPS. Cab optional.
Photos
No photos of the J.I. Case 1390 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel19 gal
71.9 L
Hydraulic system7.1 gal
26.9 L
Hydraulics
Typeopen center
Capacity7.1 gal
26.9 L
Valves1 or 2
Pump flow15.3 gpm
57.9 lpm
Tractor hitch
Rear Type2/1
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase84 inches
213 cm
Weight5,500 lbs
2494 kg
Front tire7.50-16
Rear tire16.9-30
Full dimensions and tires ...
1390 Serial Numbers
Location:Serial number stamped into the top of the tractor's frame on the right side, next to the engine.
198011120101
198111122928
198211126132
198311130040

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps26
Battery volts12
References

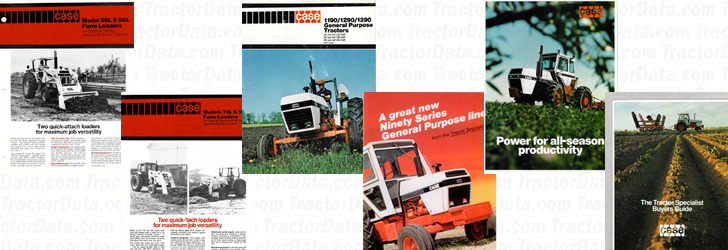

1390 references literature
Model 56L & 66L Farm Loaders published in 1980, by J.I. Case
Models 74L & 56L Farm Loaders published in 1983, by J.I. Case
1190/1290/1390 General Purpose Tractors published in 1981, by J.I. Case
A great new Ninety Series General Purpose line published in 1980, by J.I. Case
Power for all-season productivity published in 1982, by J.I. Case
The Tractor Specialist Buyers Guide published in 1983, by J.I. Case
