J.I. Case 1390 Tests


J.I. Case 1390 tractor photo
1980 - 1983
90 Series
Utility tractor
Series map:
1290
1390
1490
58.9hp*
66.7hp*
83.0hp
Nebraska Tractor Test 1380

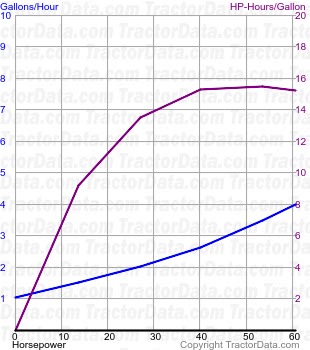

1390 fuel use from test 1380
Nebraska Tractor Test 1380
Diesel 12-speed 4WD
March 25 - April 10, 1980
Link: Nebraska Tractor Test 1380 file
PTO performance
Power at rated engine speed60.59 hp
45.2 kW
Fuel use4.0 gal/hour
15.1 l/hour
Power at rated PTO speed58.40 hp
43.5 kW
Fuel use3.7 gal/hour
14.0 l/hour
Drawbar performance
Max power50.26 hp
37.5 kW
Fuel use4.0 gal/hour
15.1 l/hour
Gear 4-1 used for power test.
Max pull8624 lbs
3911 kg
Gear 2-1 used for pull test.
