Tractor Tests | |
NTTL 1103: diesel 12-speed 2WD | |
NTTL 1160: diesel 12-speed 2WD |
Nebraska Tractor Test 1103 | |||
|
Nebraska Tractor Test 1103 | |
Diesel 12-speed 2WD June 9 - 16, 1972 Link: Nebraska Tractor Test 1103 file | |
PTO performance | |
Power at rated engine speed | 126.70 hp 94.5 kW |

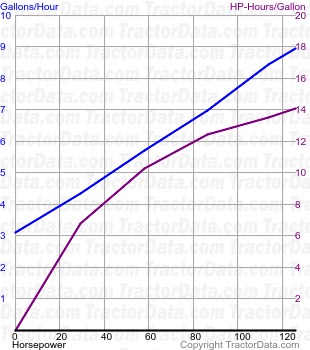

Fuel use | 8.9 gal/hour 33.7 l/hour |
Power at rated PTO speed | 126.60 hp 94.4 kW |
Fuel use | 8.7 gal/hour 32.9 l/hour |
Drawbar performance | |
Max power | 108.45 hp 80.9 kW |
Fuel use | 8.9 gal/hour 33.7 l/hour |
Gear 3-Lo used for power test. | |
Max pull | 12,690 lbs 5756 kg |
Gear 1-Hi used for pull test. |
Nebraska Tractor Test 1160 | |||
|
Nebraska Tractor Test 1160 | |
Diesel 12-speed 2WD June 3 - 11, 1974 Link: Nebraska Tractor Test 1160 file | |
PTO performance | |
Power at rated engine speed | 135.39 hp 101.0 kW |

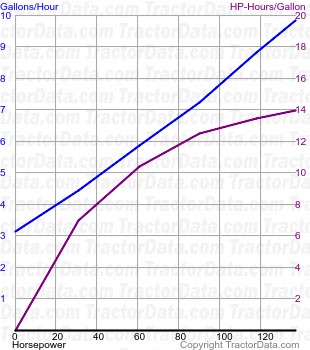

Fuel use | 9.8 gal/hour 37.1 l/hour |
Power at rated PTO speed | 135.41 hp 101.0 kW |
Fuel use | 9.5 gal/hour 36.0 l/hour |
Drawbar performance | |
Max power | 116.77 hp 87.1 kW |
Fuel use | 9.6 gal/hour 36.3 l/hour |
Gear 3-Lo used for power test. | |
Max pull | 15,648 lbs 7097 kg |
Gear 1-Int used for pull test. |
