J.I. Case 1194 Tests


J.I. Case 1194 tractor photo
1983 - 1984
94 Series
Utility tractor
Series map:
1194
1294
49.0hp
62.0hp
Nebraska Tractor Test 1378

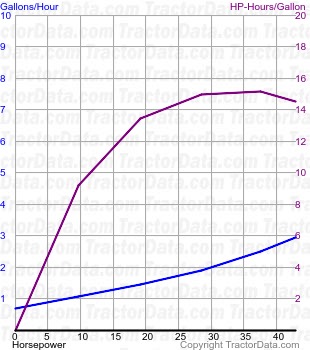

1194 fuel use from test 1378
Nebraska Tractor Test 1378
Diesel 12-speed 2WD
March 27 - April 9, 1981
Link: Nebraska Tractor Test 1378 file
PTO performance
Power at rated engine speed43.09 hp
32.1 kW
Fuel use2.9 gal/hour
11.0 l/hour
Power at rated PTO speed38.54 hp
28.7 kW
Fuel use2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power34.65 hp
25.8 kW
Fuel use2.8 gal/hour
10.6 l/hour
Gear 4-1 used for power test.
Max pull4620 lbs
2095 kg
Gear 1-3 used for pull test.
