J.I. Case 1070 Tests


J.I. Case 1070 tractor photo
1970 - 1978
Model year
70 Series
Row-Crop tractor
Series map:
970
1070
95.6hp*
112.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1035: diesel 8-speed 2WD
NTTL 1036: diesel 12-speed 2WD
NTTL 1066: diesel (2100 rpm) 12-speed 2WD
NTTL 1067: diesel 8-speed 2WD
Nebraska Tractor Test 1035

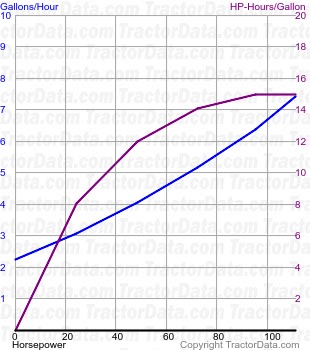

1070 fuel use from test 1035
Nebraska Tractor Test 1035
Diesel 8-speed 2WD
April 6 - May 2, 1970
Link: Nebraska Tractor Test 1035 file
PTO performance
Power at rated engine speed100.73 hp
75.1 kW
Fuel use6.5 gal/hour
24.6 l/hour
Power at rated PTO speed96.50 hp
72.0 kW
Fuel use6.1 gal/hour
23.1 l/hour
Drawbar performance
Max power84.53 hp
63.0 kW
Fuel use6.2 gal/hour
23.5 l/hour
Gear 4-Low used for power test.
Max pull11203 lbs
5081 kg
Gear 2-Low used for pull test.
Nebraska Tractor Test 1036

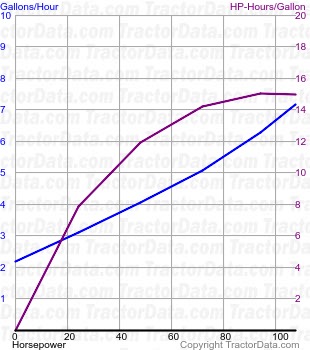

1070 fuel use from test 1036
Nebraska Tractor Test 1036
Diesel 12-speed 2WD
April 6 - 20, 1970
Link: Nebraska Tractor Test 1036 file
PTO performance
Power at rated engine speed100.21 hp
74.7 kW
Fuel use6.4 gal/hour
24.2 l/hour
Power at rated PTO speed98.74 hp
73.6 kW
Fuel use6.2 gal/hour
23.5 l/hour
Drawbar performance
Max power82.12 hp
61.2 kW
Fuel use6.4 gal/hour
24.2 l/hour
Gear 2-High used for power test.
Max pull10912 lbs
4949 kg
Gear 1-Med used for pull test.
Nebraska Tractor Test 1066

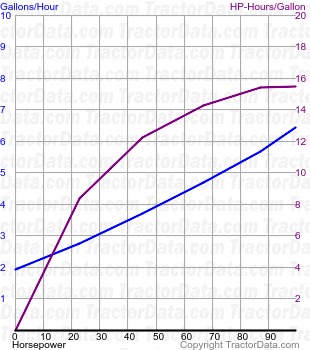

1070 fuel use from test 1066
Nebraska Tractor Test 1066
Diesel (2100 rpm) 12-speed 2WD
May 7 - 21, 1971
Link: Nebraska Tractor Test 1066 file
PTO performance
Power at rated engine speed108.10 hp
80.6 kW
Fuel use7.2 gal/hour
27.3 l/hour
Power at rated PTO speed99.92 hp
74.5 kW
Fuel use6.5 gal/hour
24.6 l/hour
Drawbar performance
Max power90.99 hp
67.9 kW
Fuel use7.2 gal/hour
27.3 l/hour
Gear 2-Medium used for power test.
Max pull13780 lbs
6250 kg
Gear 1-Low used for pull test.
Nebraska Tractor Test 1067

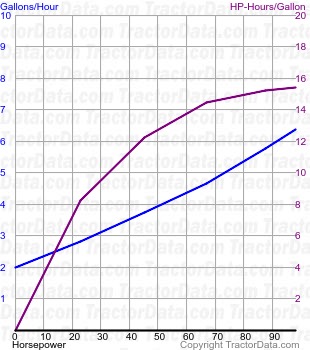

1070 fuel use from test 1067
Nebraska Tractor Test 1067
Diesel 8-speed 2WD
May 6 - 21, 1971
Link: Nebraska Tractor Test 1067 file
PTO performance
Power at rated engine speed107.36 hp
80.1 kW
Fuel use7.1 gal/hour
26.9 l/hour
Power at rated PTO speed103.91 hp
77.5 kW
Fuel use6.6 gal/hour
25.0 l/hour
Drawbar performance
Max power90.77 hp
67.7 kW
Fuel use7.0 gal/hour
26.5 l/hour
Gear 4-Low used for power test.
Max pull13116 lbs
5949 kg
Gear 1-Low used for pull test.
