J.I. Case 1031 Tests


J.I. Case 1031 tractor photo
1966 - 1969
1030 Series
Row-Crop tractor
Nebraska Tractor Test 952

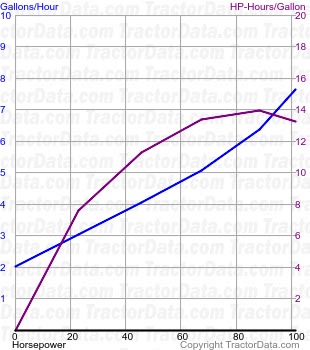

1031 fuel use from test 952
Nebraska Tractor Test 952
Diesel 8-speed 2WD
November 2 - 5, 1966
Link: Nebraska Tractor Test 952 file
PTO performance
Power at rated engine speed101.79 hp
75.9 kW
Fuel use7.7 gal/hour
29.1 l/hour
Power at rated PTO speed93.15 hp
69.5 kW
Fuel use6.8 gal/hour
25.7 l/hour
Drawbar performance
Max power88.34 hp
65.9 kW
Fuel use7.6 gal/hour
28.8 l/hour
Gear 4 used for power test.
Max pull12,056 lbs
5468 kg
Gear 2 used for pull test.
