J.I. Case 970 Transmission


J.I. Case 970 tractor photo
1970 - 1978
Model year
70 Series
Row-Crop tractor
Series map:
870
970
1070
78.9hp*
95.6hp*
112.2hp*
*Estimated engine power for comparison only.
Transmission options
8-speed unsynchronized gear
12-speed partial power shift
Transmission
Typeunsynchronized gear
Gears8 forward and 2 reverse
Clutch355.6mm dry disc
Speeds
970  unsynchronized gear speeds
Transmission
TransmissionRange Power Shift
Typepartial power shift
Gears12 forward and 4 reverse
Clutchhydraulic wet discs
Four gears each with reverse and a three-speed forward powershift.
Speeds

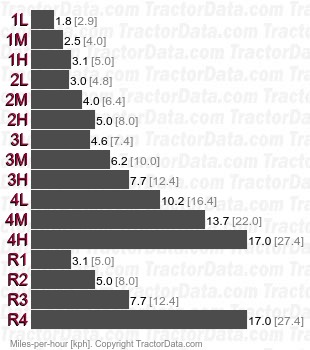

970 Range Power Shift partial power shift speeds
