J.I. Case 930

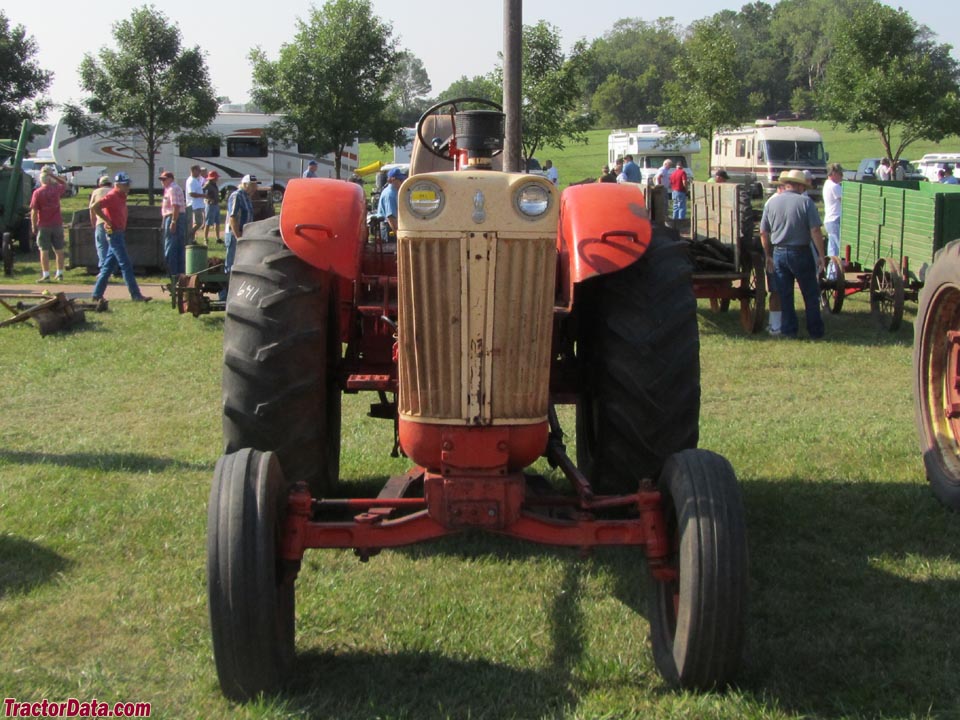

J.I. Case 930 tractor photo
1960 - 1969
30 Series
Standard-tread tractor
Production
ManufacturerJ.I. Case
Standard-tread tractor
Built in Racine, Wisconsin, USA
Original price was $6,700 in 1969
The 930 Comfort King (930 CK) was introduced in 1962.
Variants
930diesel standard
931diesel general-purpose
940gas standard
941gas general-purpose
J.I. Case 930 Engine
J.I. Case 6.6L 6-cyl diesel
Fuel tank30 gal
113.6 L
 48 gal (CK)
181.7 L
Engine details ...
J.I. Case 930 Power
Belt (claimed)83 hp
61.9 kW
Plows6
Drawbar (tested)70.93 hp
52.9 kW
PTO (tested)80.65 hp
60.1 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringpower assist
Differential mechanical dry disc brakes
Open operator station.
Hydraulics
TypeDual-Control
Valves1 or 2
Pump flow15 gpm
56.8 lpm
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
Dimensions & Tires
Wheelbase84 inches
213 cm
Weight8,850 lbs
4014 kg
Front tire7.50-18
Rear tire15x34
Full dimensions and tires ...

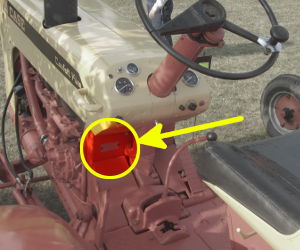

930 Serial Number Location
J.I. Case 930 serial number location
Plate on instrument panel
930 Serial Numbers
19608160001
19618168801
19628190001
19638208001
19648229001
19658253501
19668279001
19678306501
19688332101
19698356251

FAQ: How to read a serial number table.
Belt Pulley
Diameter11.75 inches
29 cm
Width8.25 inches
20 cm
RPM1007
References
930 references literature
1960 Progress Parade of Case Farm Equipment published by J.I. Case
A Complete New Line of Case Plus-Powered Tractors published in 1960, by J.I. Case
1965 Buyers Guide published by J.I. Case
Buyers Guide for '67 published in 1967, by J.I. Case
