Series map:
770
870
970
62.2hp*
78.9hp*
95.6hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed unsynchronized gear |
| 12-speed partial power shift |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 304.8mm dry disc
|

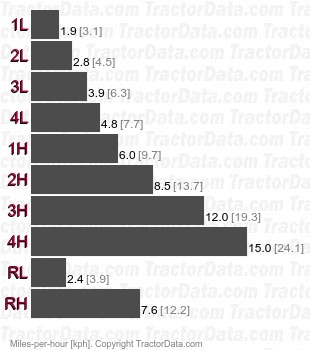

| Speeds |
|
| Transmission |
| Transmission | Range Power Shift
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Clutch | hydraulic wet discs
|
| Four gears each with reverse and a three-speed forward powershift. |

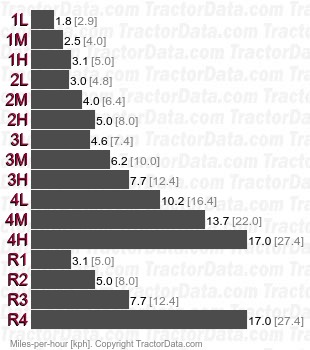

| Speeds |
|
