J.I. Case 841
| | 1960 - 1969 |
| 830 Series | | Row-Crop tractor |
|
Series map:
841
70.9hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | J.I. Case
|
| Row-Crop tractor |
| Built in Racine, Wisconsin, USA |
| Original price | $5,100 (1969)
|
| Variants |
| 830 | diesel standard-front
|
| 831 | diesel row-crop
|
| 832 | diesel Western Special
|
| 833 | diesel high-crop
|
| 840 | gas standard-front
|
| 841 | gas row-crop
|
| 842 | gas Western Special
|
| 843 | gas high-crop
|
| J.I. Case 841 Power |
| Belt (claimed) | 66 hp
49.2 kW
|
| Plows | 5
|
| Drawbar (tested) | 58.41 hp
43.6 kW
|
| PTO (tested) | 65.96 hp
49.2 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | power assist
|
| Mechanical dry disc brakes |
| Open operator station. |
| Hydraulics |
| Type | open center
|
| Tractor hitch |
| Rear Type | II
|
| Control | Draft-o-matic load/depth control
|
| Type | Case Eagle Hitch
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|

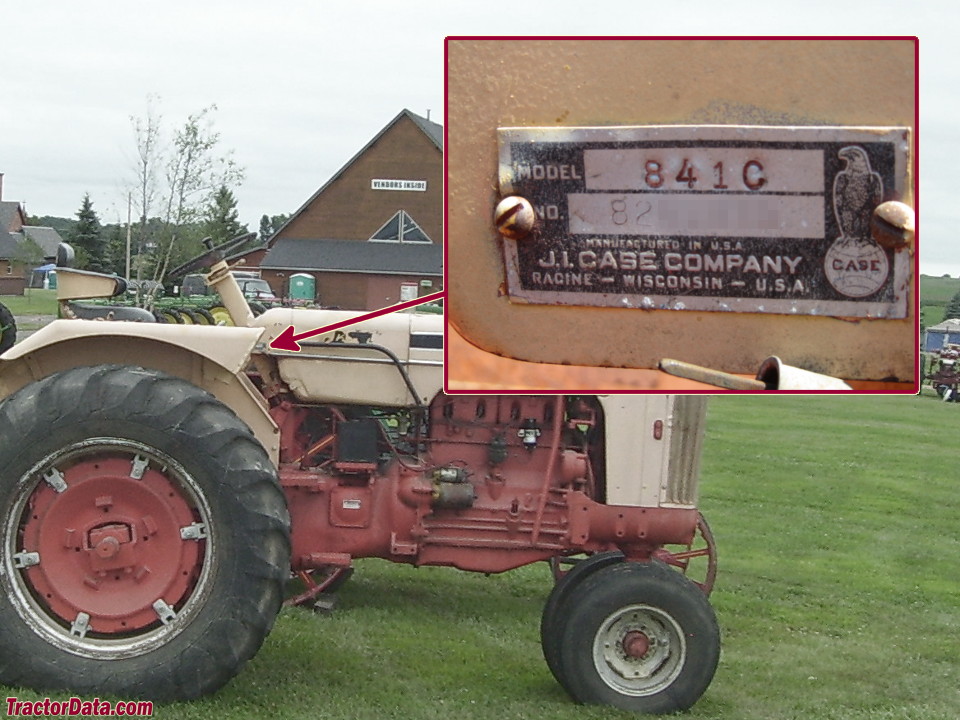

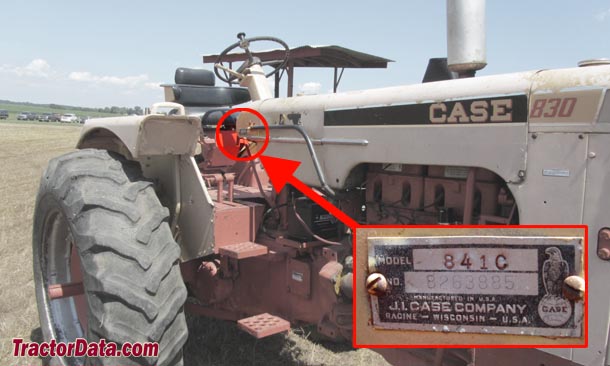

| 841 Serial Number Location |
 |
| Plate on right side of instrument panel. Case-O-Matics marked as 841C. |
| Belt Pulley |
| Diameter | 10.5 inches
26 cm
|
| Width | 7.25 inches
18 cm
|
| RPM | 1322 (Dual Range)
|
| | 1027 (Case-O-Matic 540)
|
| | 1261 (Case-O-Matic 1000)
|
| References |
 |
| 295 / 391 / 392 Loaders published in 1966, by J.I. Case |
| 830 Series 5-6 Plow Tractor published in 1960, by J.I. Case |
| 1960 Progress Parade of Case Farm Equipment published by J.I. Case |
| A Complete New Line of Case Plus-Powered Tractors published in 1960, by J.I. Case |
| 1965 Buyers Guide published by J.I. Case |
| Buyers Guide for '67 published in 1967, by J.I. Case |
